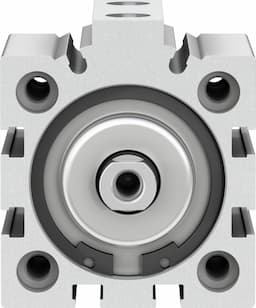

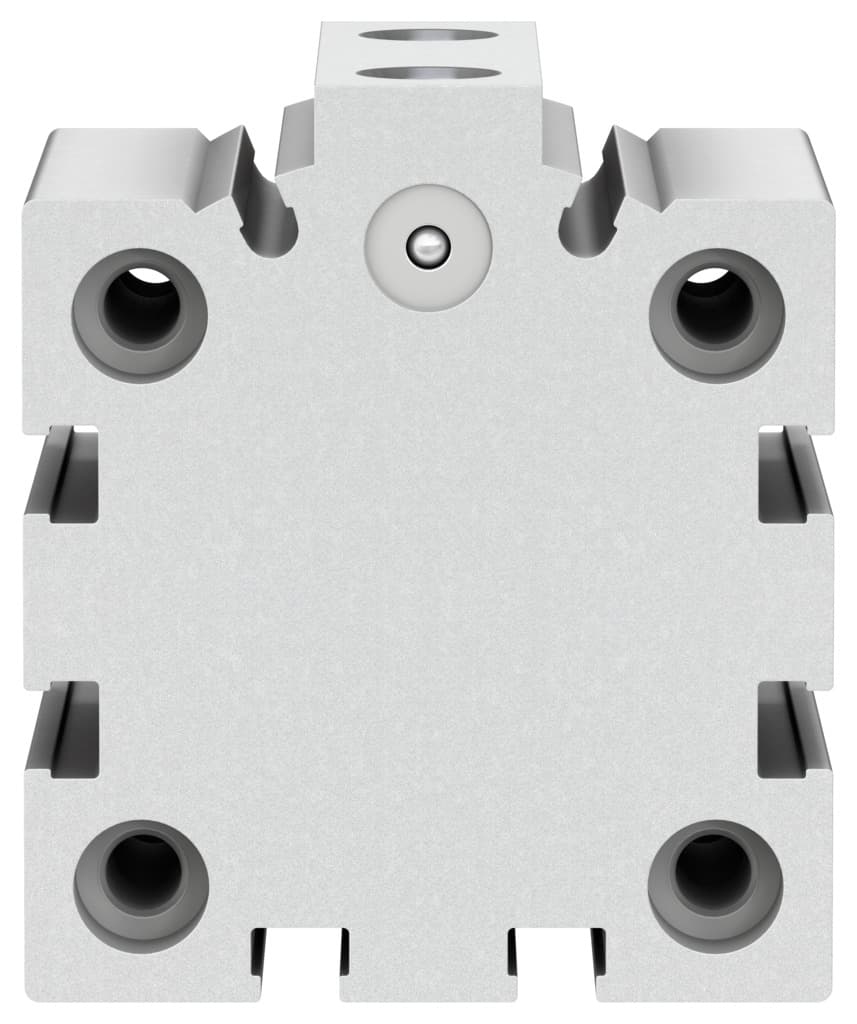

Festo ADVC-40-20-I-P Short-Stroke Cylinder | High-Performance Pneumatic Actuator

Selling Points

1High-Performance Pneumatic Actuator: Designed for precise control in various industrial applications.
2Elastic Cushioning: Features elastic cushioning rings at both ends for smooth operation.
3Wide Operating Pressure Range: Operates effectively between 1 to 10 bar, ensuring versatility in different environments.
4Corrosion-Resistant Materials: Constructed with corrosion-resistant materials, including NBR and TPE-U(PU) seals and high-alloy steel piston rod.
5Versatile Installation: Can be installed in any position due to its through-hole mounting design.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	40 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	84g
Moving mass at 0?mm stroke	64g	Additional moving mass per 10?mm stroke	10g
Product weight	301g	Basic weight with 0?mm stroke	226g
Additional weight per 10?mm stroke	28g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188240

Specifications may be subject to change without notice
