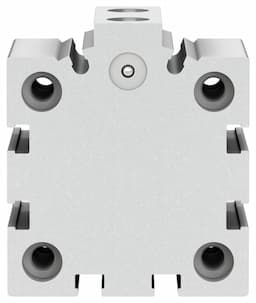

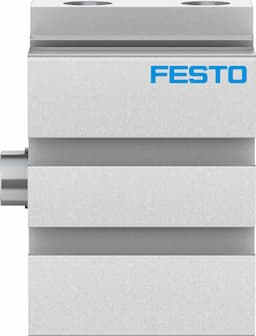

Festo ADVC-40-5-I-P-A Short Stroke Cylinder - High Precision and Durability

Selling Points

1High Precision and Durability: Engineered for precise applications with elastic cushioning rings for smooth operation.
2Wide Operating Pressure Range: Compatible with pressures from 0.1 to 10 bar, ensuring versatility in various industrial settings.
3Robust Construction: Made from high-alloy steel piston rod and wrought aluminum alloy housing for enhanced durability.
4Easy Mounting Options: Mountable via through-hole or accessories, offering flexibility in installation.
5Compliant with Industry Standards: Meets ISO 6431 and VDMA 24562 standards, ensuring reliability and consistency.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	40 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	66g
Moving mass at 0?mm stroke	61g	Additional moving mass per 10?mm stroke	10g
Product weight	280g	Basic weight with 0?mm stroke	275g
Additional weight per 10?mm stroke	26g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188232

Specifications may be subject to change without notice
