Product Model
advc-4-5-a-p
Selling Points

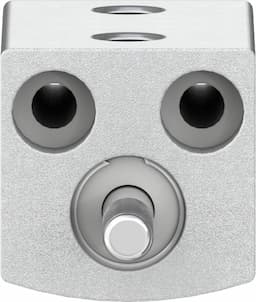

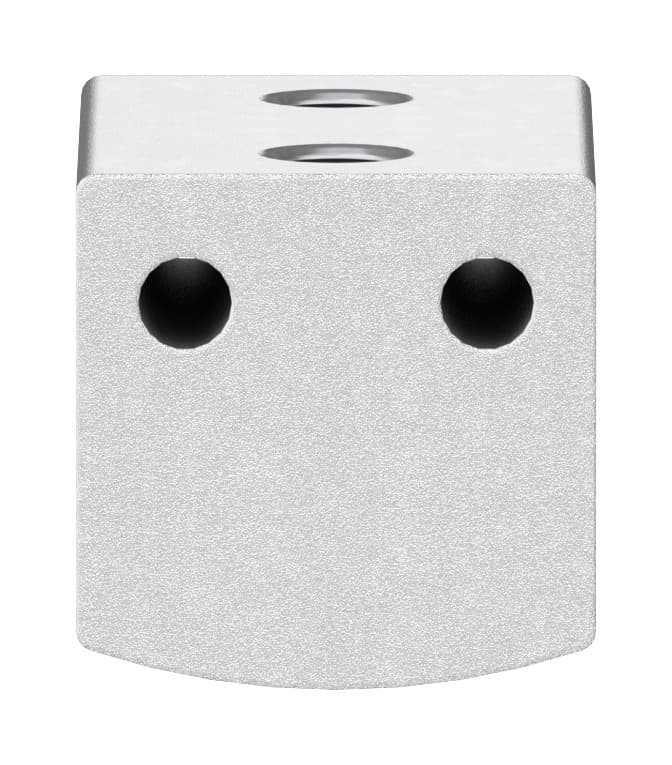

- 1The ADVC-4-5-A-P short-stroke cylinder is engineered for precise operations, ensuring reliable performance in various pneumatic applications.
- 2This cylinder can be mounted via through-holes or accessories, providing flexibility in installation and integration.
- 3Equipped with elastic cushioning rings at both ends, it offers smooth operation and reduces wear and tear.
- 4The ADVC-4-5-A-P operates effectively within a pressure range of 2 to 8 bar, making it suitable for diverse applications.
- 5With a corrosion resistance class of CRC 1, this cylinder is designed to withstand low corrosion stress, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 4 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991227 |
Operating pressure | 29psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 5.7N | Theoretical force at 6 bar, advancing | 7.5N |
Moving mass | 0.25g | Product weight | 4.3g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | Wrought aluminum alloy Anodized | Manufacturer ID | 188055 |
Specifications may be subject to change without notice
