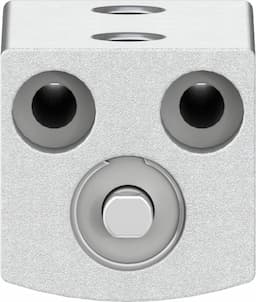

Festo ADVC-4-5-P Short-Stroke Cylinder - High Precision Pneumatic Cylinders

Selling Points

1The Festo ADVC-4-5-P short-stroke cylinder is engineered for high precision and reliability, ensuring consistent performance in various pneumatic applications.
2With a stroke length of 5 mm and a piston diameter of 4 mm, this cylinder is ideal for applications requiring minimal space and precise movement.
3Equipped with elastic cushioning rings/plates at both ends, the ADVC-4-5-P provides smooth operation and reduces shock loads, extending the lifespan of the cylinder.
4The cylinder can be mounted in any position, offering flexibility in system design and installation.
5The ADVC-4-5-P meets ISO 8573-1:2010 standards for compressed air quality and is designed to operate within a temperature range of -20°C to 80°C, ensuring compatibility with various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	4 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	29psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	5.7N	Theoretical force at 6 bar, advancing	7.5N
Moving mass	0.25g	Product weight	4.2g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	HNBR NBR	Housing material	Wrought aluminum alloy Anodized
Piston rod material	Wrought aluminum alloy Anodized	Manufacturer ID	526898

Specifications may be subject to change without notice
