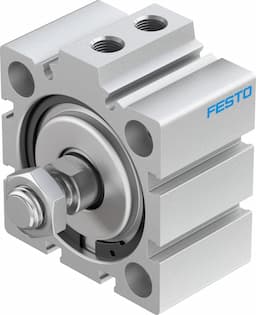

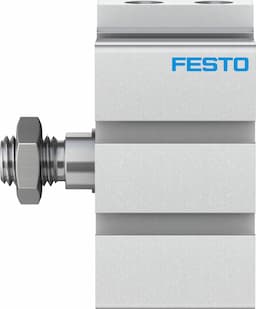

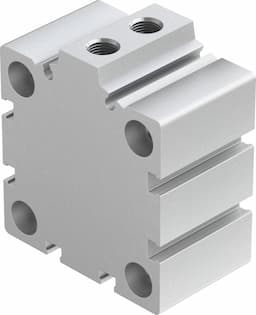

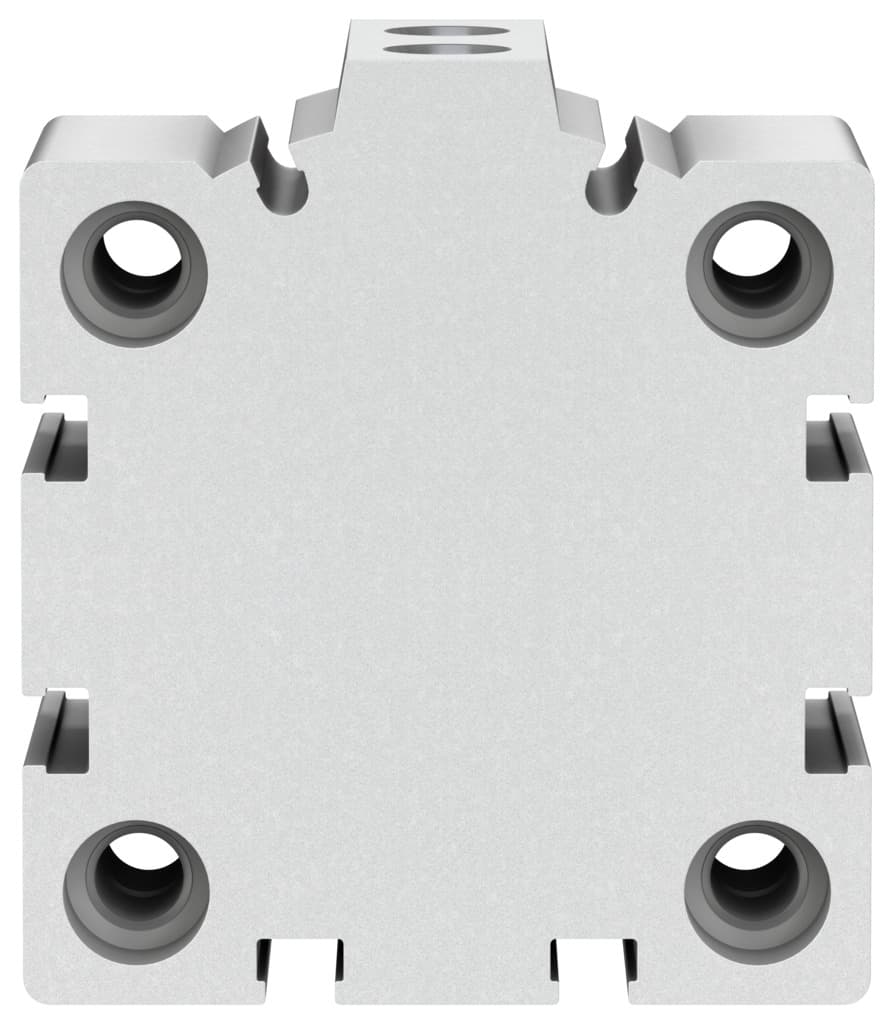

Festo ADVC-50-10-A-P Short-Stroke Cylinder | High-Performance Pneumatic Solution

Selling Points

1High-Performance Operation: Double-acting design for precise control and efficient operation.
2Compact Design: 10mm stroke length and 50mm piston diameter for space-saving applications.
3Robust Construction: Made from high-quality materials including wrought aluminium alloy and high-alloy steel.
4Versatile Mounting Options: Available with through-hole or accessory mounting options for flexible installation.
5Compliant with Industry Standards: RoHS compliant and meets ISO 8573-1:2010 standards for compressed air quality.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	50 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	8.7psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	1057N
Theoretical force at 6 bar, advancing	1178N	Moving mass	119g
Moving mass at 0?mm stroke	111g	Additional moving mass per 10?mm stroke	16g
Product weight	388g	Basic weight with 0?mm stroke	357g
Additional weight per 10?mm stroke	62g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188272

Specifications may be subject to change without notice
