Product Model

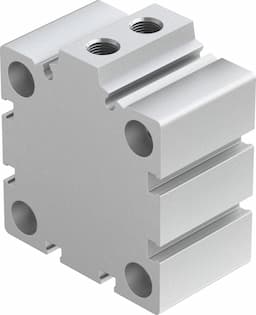

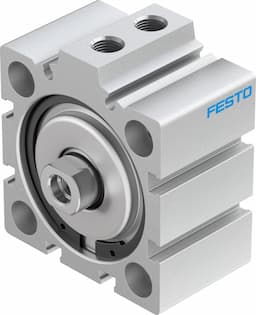

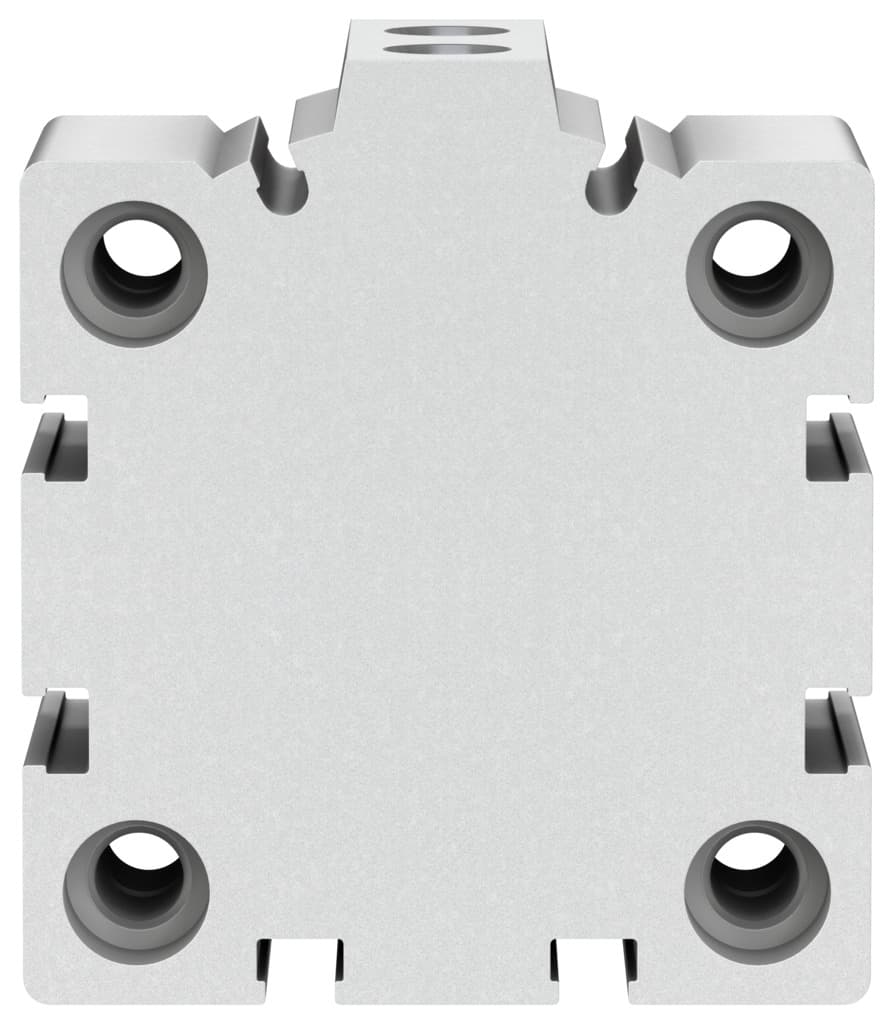

advc-50-10-i-p
Selling Points
- 1The ADVC-50-10-I-P features a 10mm stroke and 50mm piston diameter, making it perfect for precise movements.
- 2Equipped with flexible cushioning rings at both ends for smooth operation and reduced impact.
- 3Designed for double-acting operation, allowing for both extension and retraction.
- 4Operates with filtered compressed air in accordance with ISO 8573-1:2010 [7:4:4].
- 5Classified as CRC 1, indicating low corrosion stress, suitable for internal applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 50 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991227 | Operating pressure | 8.7psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1057N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass | 119g |
Moving mass at 0?mm stroke | 111g | Additional moving mass per 10?mm stroke | 16g |
Product weight | 350g | Basic weight with 0?mm stroke | 357g |
Additional weight per 10?mm stroke | 62g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188264 |
Specifications may be subject to change without notice
