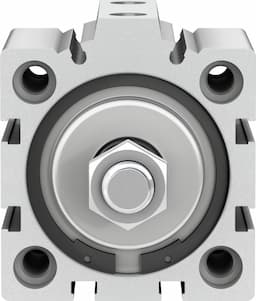

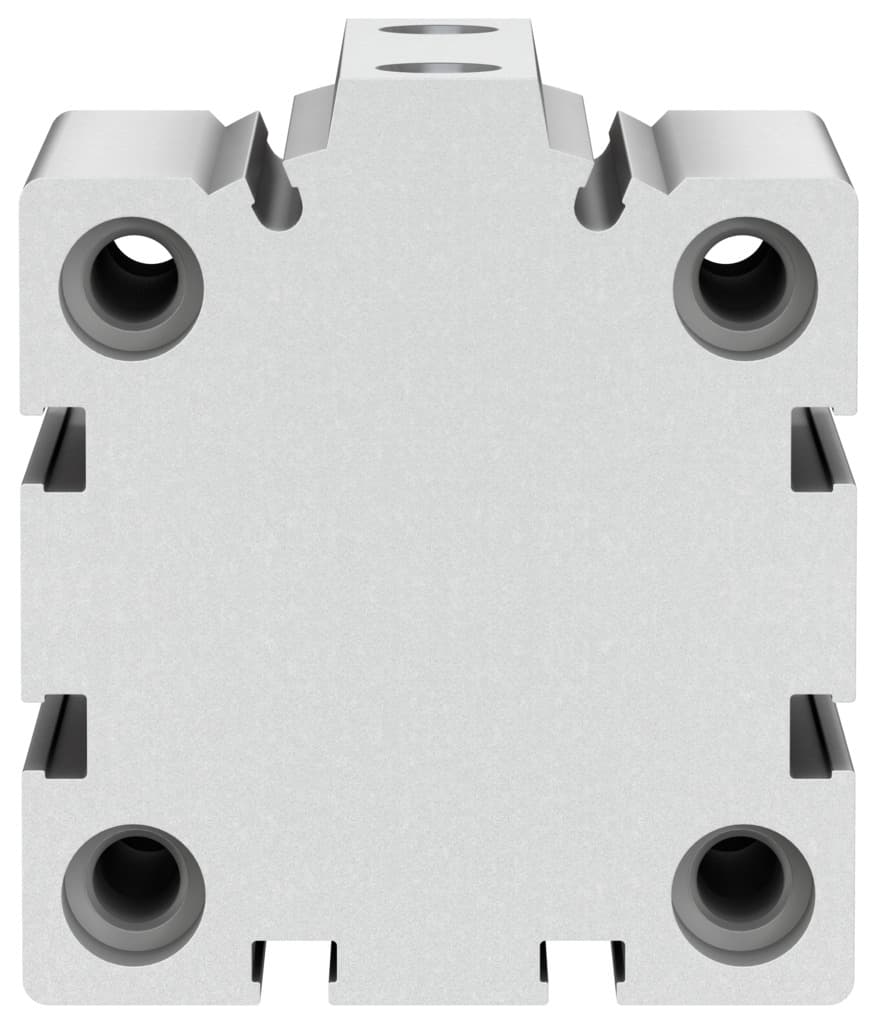

Festo ADVC-50-15-A-P-A Short-Stroke Cylinder

Selling Points

1Compact Design: The ADVC-50-15-A-P-A features a short stroke length of 15 mm, making it perfect for space-constrained applications.
2Double-Acting Operation: This cylinder operates in both directions, providing balanced forces and efficient motion control.
3Durable Construction: Built with high-alloy steel piston rods and anodized aluminum alloy housing, ensuring long-lasting performance.
4Flexible Cushioning: Equipped with elastic cushioning rings at both ends for smooth operation and reduced wear.
5ISO Compliance: Meets international standards (ISO 6431, VDMA 24562) for precision and reliability in industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	50 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	8.7psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	1057N
Theoretical force at 6 bar, advancing	1178N	Moving mass	115g
Moving mass at 0?mm stroke	99g	Additional moving mass per 10?mm stroke	16g
Product weight	488g	Basic weight with 0?mm stroke	431g
Additional weight per 10?mm stroke	56g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188269
