Product Model

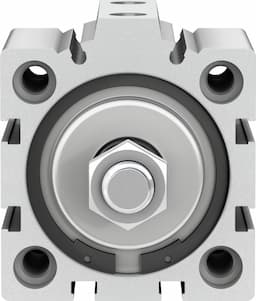

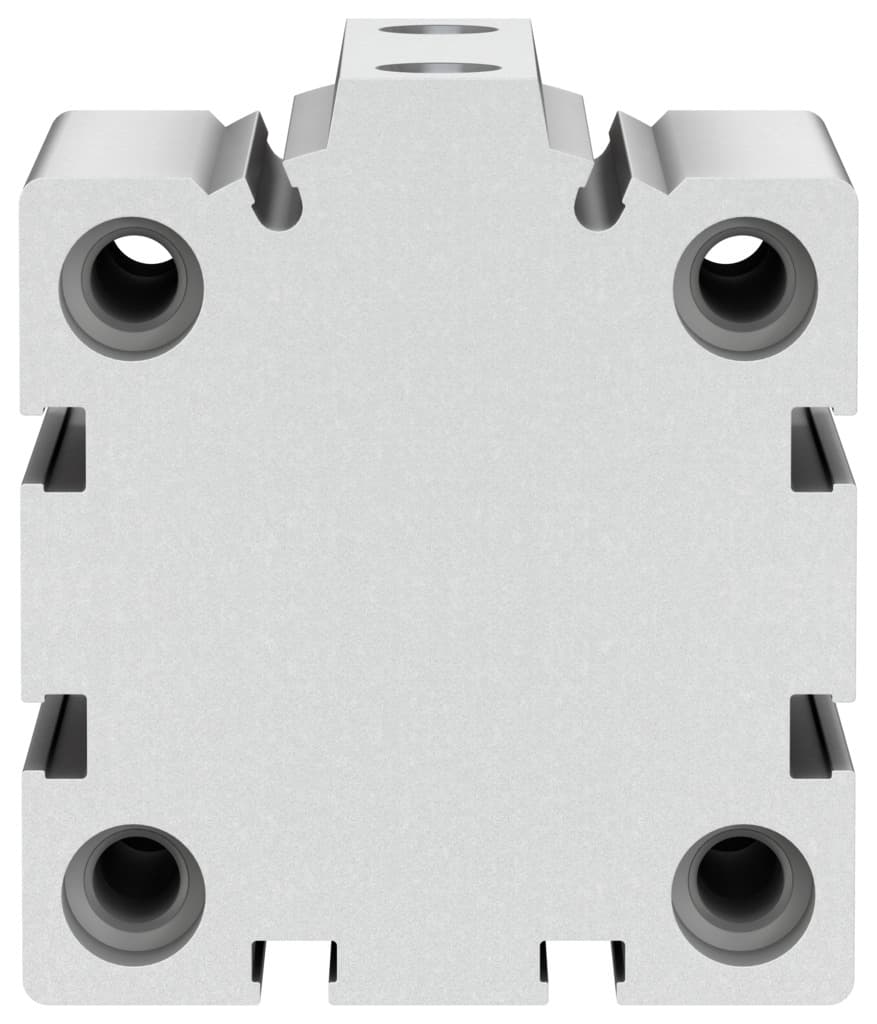

advc-50-25-a-p
Selling Points
- 1High-Performance Operation: The ADVC-50-25-A-P operates with compressed air, ensuring precise and reliable movement in your industrial setup.
- 2Compact Design: With a stroke length of 25 mm, this cylinder is perfect for applications requiring minimal space.
- 3Robust Construction: Made from high-quality materials like wrought aluminum alloy and high-alloy steel, ensuring durability and long service life.
- 4Low Corrosion Stress: Classified as CRC 1, this cylinder has low corrosion stress, making it suitable for harsh environments.
- 5Easy Installation: Features a G1/8 pneumatic connection and optional through-hole mounting, simplifying installation and integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 50 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991227 | Operating pressure | 8.7psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1057N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass | 143g |
Moving mass at 0?mm stroke | 111g | Additional moving mass per 10?mm stroke | 16g |
Product weight | 481g | Basic weight with 0?mm stroke | 357g |
Additional weight per 10?mm stroke | 62g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188275 |
Specifications may be subject to change without notice
