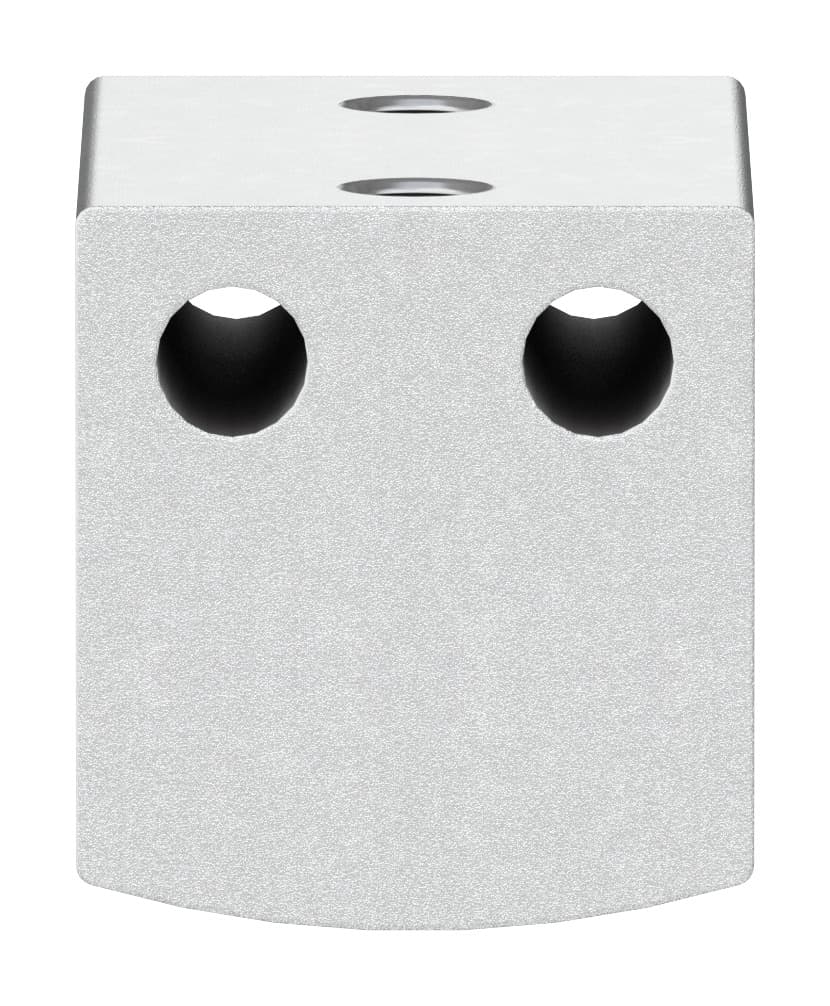

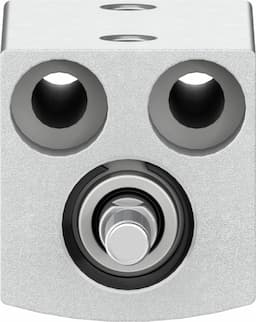

Festo ADVC-6-10-A-P Short-Stroke Cylinder | High-Quality Pneumatic Components

Selling Points

1The Festo ADVC-6-10-A-P short-stroke cylinder offers a stroke length of 10 mm, making it ideal for applications requiring precise and controlled movements.
2Equipped with elastic silencer rings and plates for effective dampening, this cylinder ensures smooth operation and reduced noise.
3The cylinder operates at pressures ranging from 1.5 to 8 bar, allowing it to be used in a variety of pneumatic systems.
4Constructed with high-alloyed steel for the piston rod and NBR/TPE-U(PU) seals, this cylinder provides durability and resistance to wear.
5Available with M3 pneumatic connections, the ADVC-6-10-A-P is easy to integrate into existing pneumatic setups, enhancing flexibility and efficiency in automation systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	6 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	21.75psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	13N	Theoretical force at 6 bar, advancing	17N
Moving mass	1.5g	Product weight	10g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188067

Specifications may be subject to change without notice
