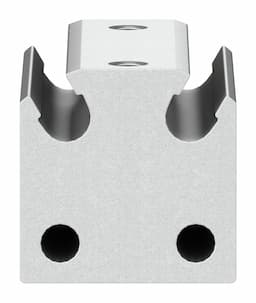

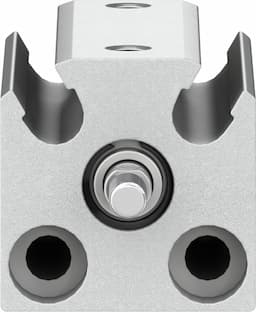

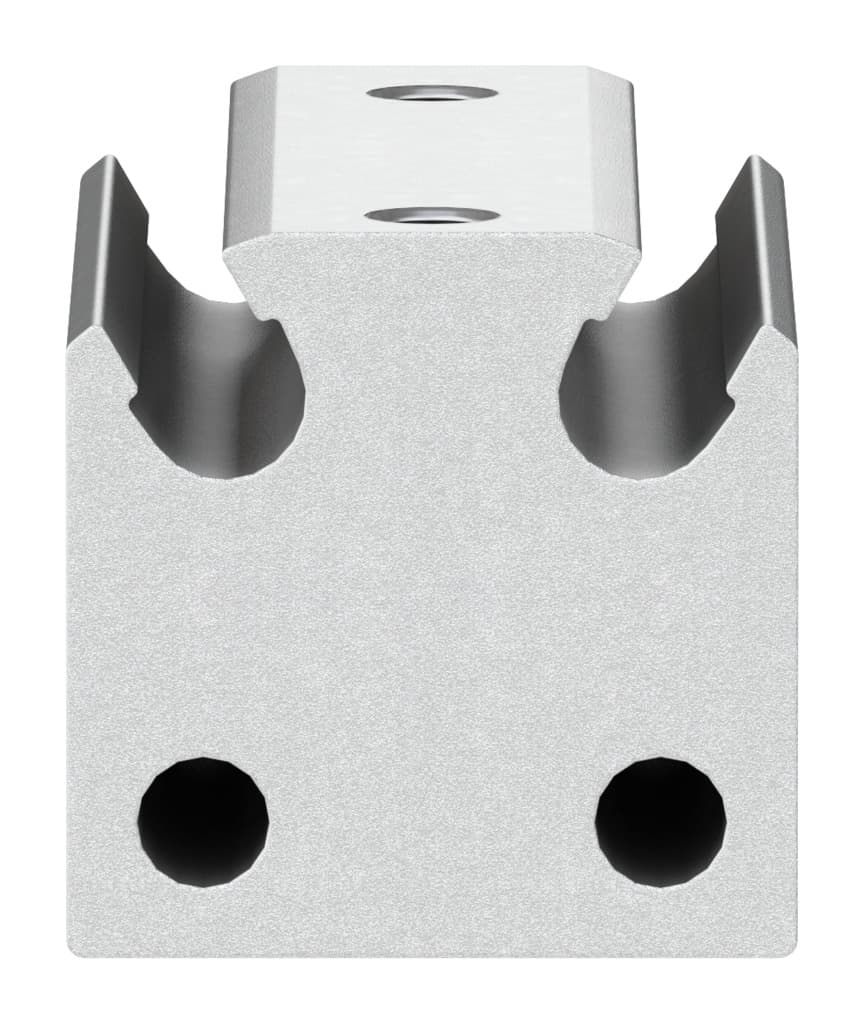

Festo ADVC-6-10-A-P-A Short Stroke Cylinder

Selling Points

1The Festo ADVC-6-10-A-P-A short stroke cylinder is designed for proximity sensing, ensuring precise positioning in automation applications.
2With a piston diameter of 6 mm and a stroke of 10 mm, this cylinder offers compact and efficient operation.
3The cylinder features flexible cushioning rings/plates at both ends, providing effective cushioning and reducing wear.
4The ADVC-6-10-A-P-A is suitable for any assembly position and operates under double-acting mode, enhancing its versatility in various applications.
5The cylinder operates within a pressure range of 1.5 to 8 bar, making it compatible with a variety of pneumatic systems, and is built with high-alloy steel for durability and corrosion resistance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	6 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	21.75psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	13N	Theoretical force at 6 bar, advancing	17N
Moving mass	2g	Product weight	16g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188065

Specifications may be subject to change without notice
