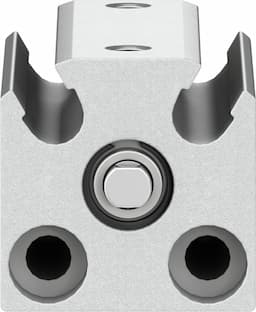

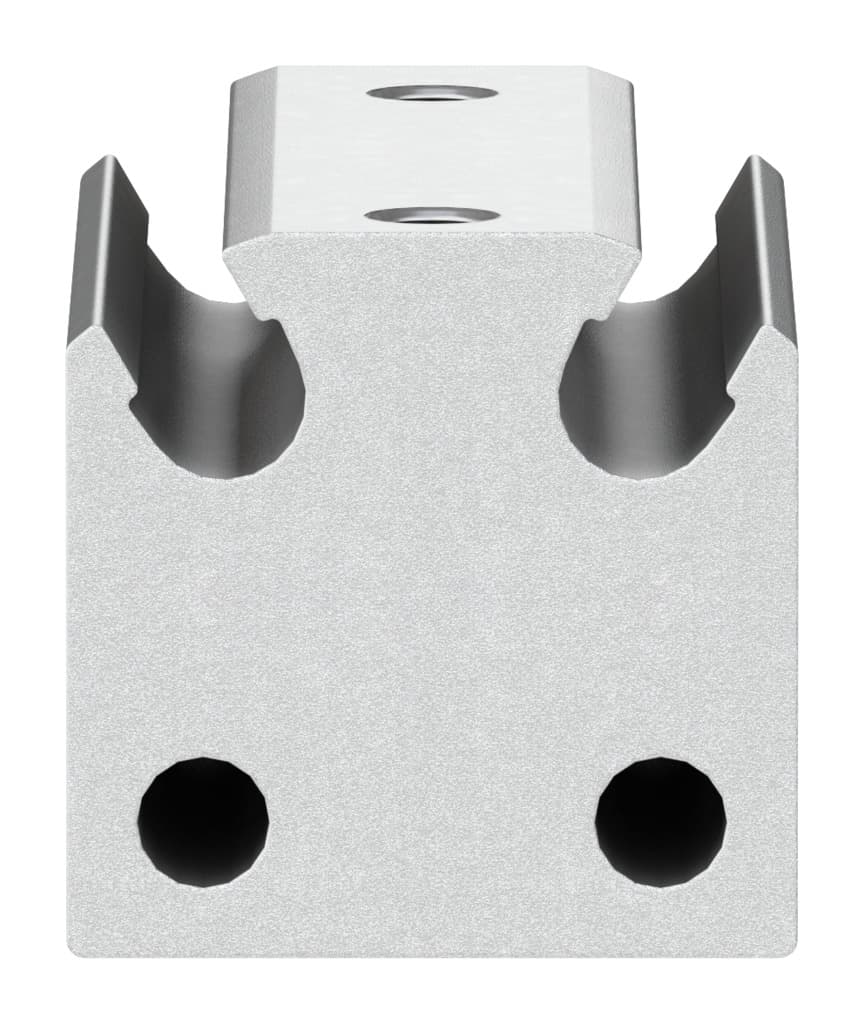

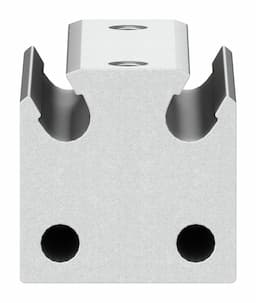

Festo ADVC-6-10-P-A Pneumatic Cylinder - High-Quality Automation Solutions

Selling Points

1The ADVC-6-10-P-A pneumatic cylinder from Festo is designed for precision and reliability, ensuring consistent performance in various industrial applications.
2This cylinder features standardized dimensions and mounting interfaces, making it easy to integrate into existing systems.
3With its robust construction and durable materials, the ADVC-6-10-P-A cylinder provides long-lasting service and minimal maintenance requirements.
4Festo's commitment to quality is evident in the ADVC-6-10-P-A, which meets high industry standards for performance and durability.
5The ADVC-6-10-P-A cylinder is part of Festo's extensive range of pneumatic components, offering a one-stop solution for all your automation needs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	6 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	21.75psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	13N	Theoretical force at 6 bar, advancing	17N
Moving mass	2g	Product weight	17g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	526902

Specifications may be subject to change without notice
