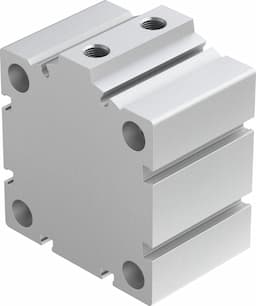

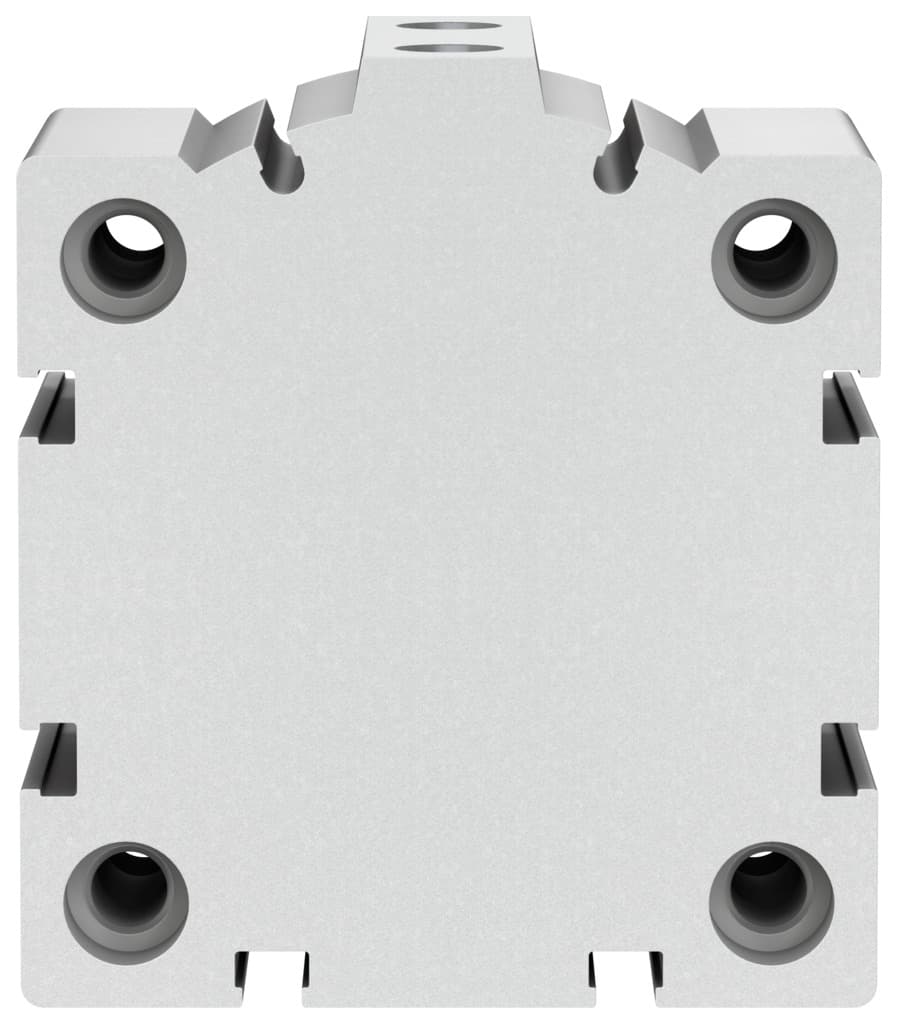

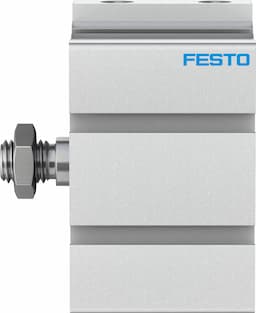

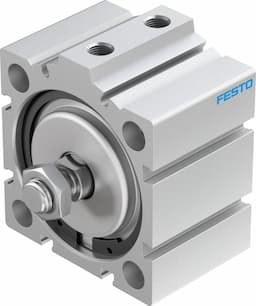

Festo ADVC-63-10-A-P-A Short-Stroke Cylinder

Selling Points

1High Performance: The ADVC-63-10-A-P-A offers high theoretical forces at 6 bar, advancing and retracting, ensuring reliable operation in various applications.
2Elastic Cushioning: Equipped with elastic cushioning rings at both ends for smooth operation and reduced wear.
3Double-Acting: Designed for double-acting operation, allowing for both advancing and retracting strokes.
4Corrosion Resistance: Features a low corrosion resistance class (CRC 1) for durability in demanding environments.
5Precision Mounting: Compatible with various mounting options, including through-hole and accessories, for flexible installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	63 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	8.7psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	1750N
Theoretical force at 6 bar, advancing	1870N	Moving mass	150g
Moving mass at 0?mm stroke	142g	Additional moving mass per 10?mm stroke	16g
Product weight	626g	Basic weight with 0?mm stroke	626g
Additional weight per 10?mm stroke	74g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188292

Specifications may be subject to change without notice
