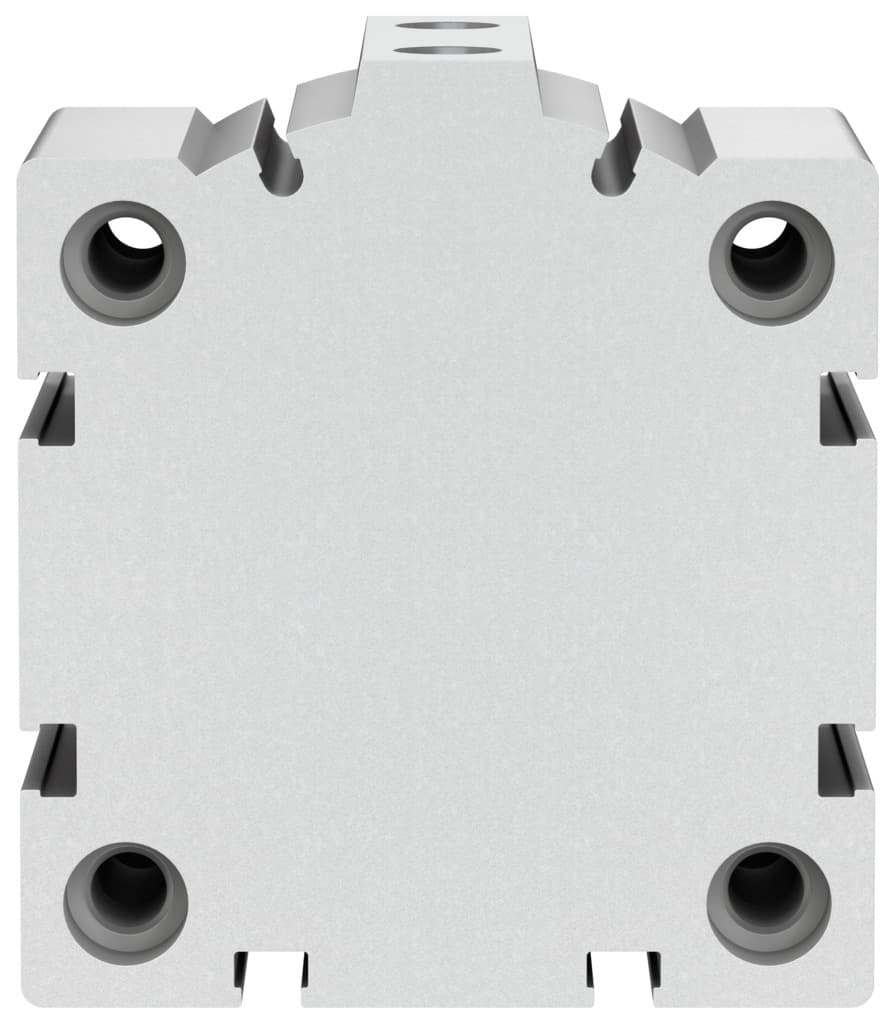

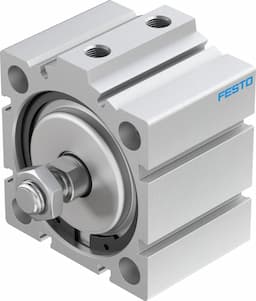

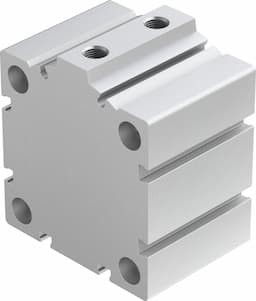

Festo ADVC-63-15-A-P Short Stroke Cylinder | High Precision and Durability

Selling Points

1High Precision: Designed with a 15 mm stroke and 63 mm piston diameter for precise control.
2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation.
3Low Corrosion Resistance: Features a corrosion resistance class of CRC 1, ensuring low corrosion stress.
4Versatile Mounting: Can be mounted via through-hole or with accessories, offering flexibility in installation.
5Compliant with ISO Standards: Meets ISO 6431 and ISO 8573-1:2010 standards for pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	63 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	8.7psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	1750N
Theoretical force at 6 bar, advancing	1870N	Moving mass	178g
Moving mass at 0?mm stroke	162g	Additional moving mass per 10?mm stroke	16g
Product weight	663g	Basic weight with 0?mm stroke	578g
Additional weight per 10?mm stroke	80g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188297

Specifications may be subject to change without notice
