Product Model

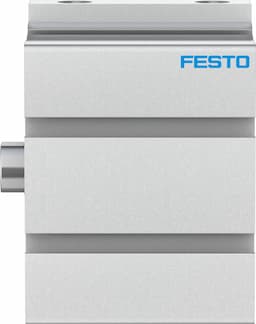

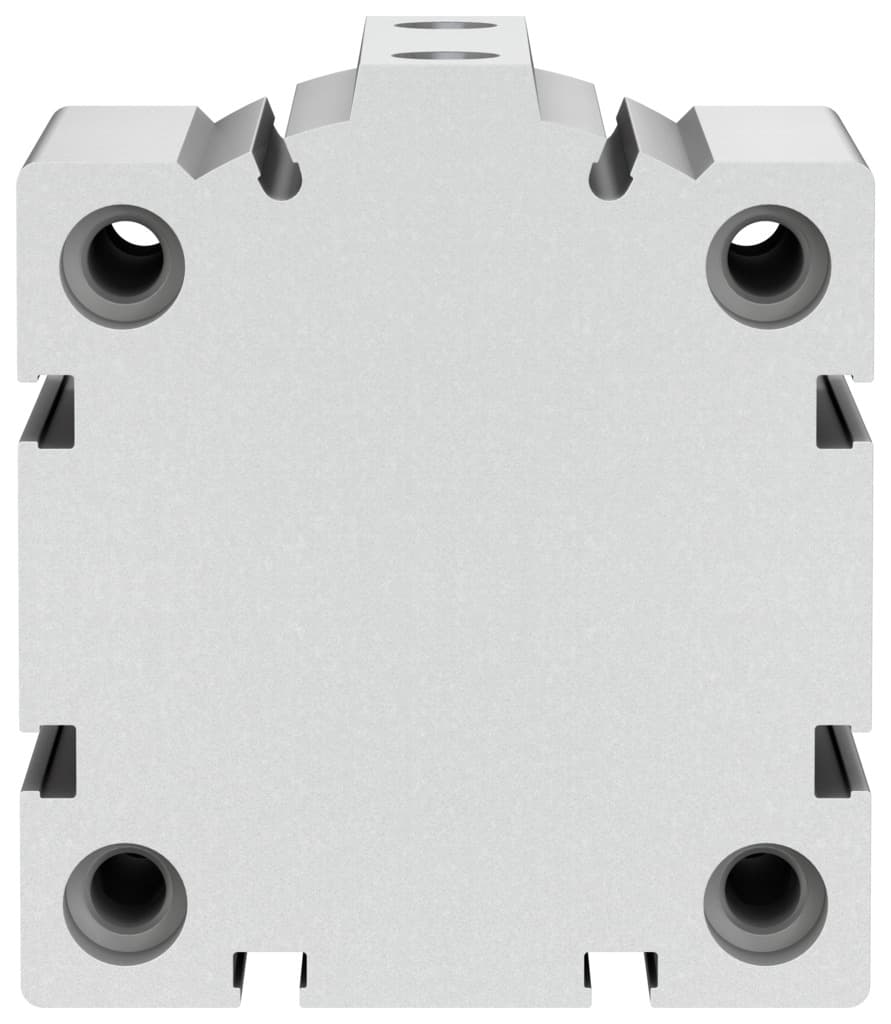

advc-63-15-i-p-a
Selling Points
- 1Designed for precise movements in various industrial applications.
- 2Suitable for both lubricated and unlubricated compressed air operations.
- 3Ideal for space-constrained environments with a 5 mm stroke length.
- 4Built with corrosion-resistant materials for long-lasting performance.
- 5Compatible with Festo's extensive range of pneumatic systems and accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 63 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 8.7psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1750N |
Theoretical force at 6 bar, advancing | 1870N | Moving mass | 158g |
Moving mass at 0?mm stroke | 142g | Additional moving mass per 10?mm stroke | 16g |
Product weight | 675g | Basic weight with 0?mm stroke | 626g |
Additional weight per 10?mm stroke | 74g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188285 |
Specifications may be subject to change without notice
