Product Model

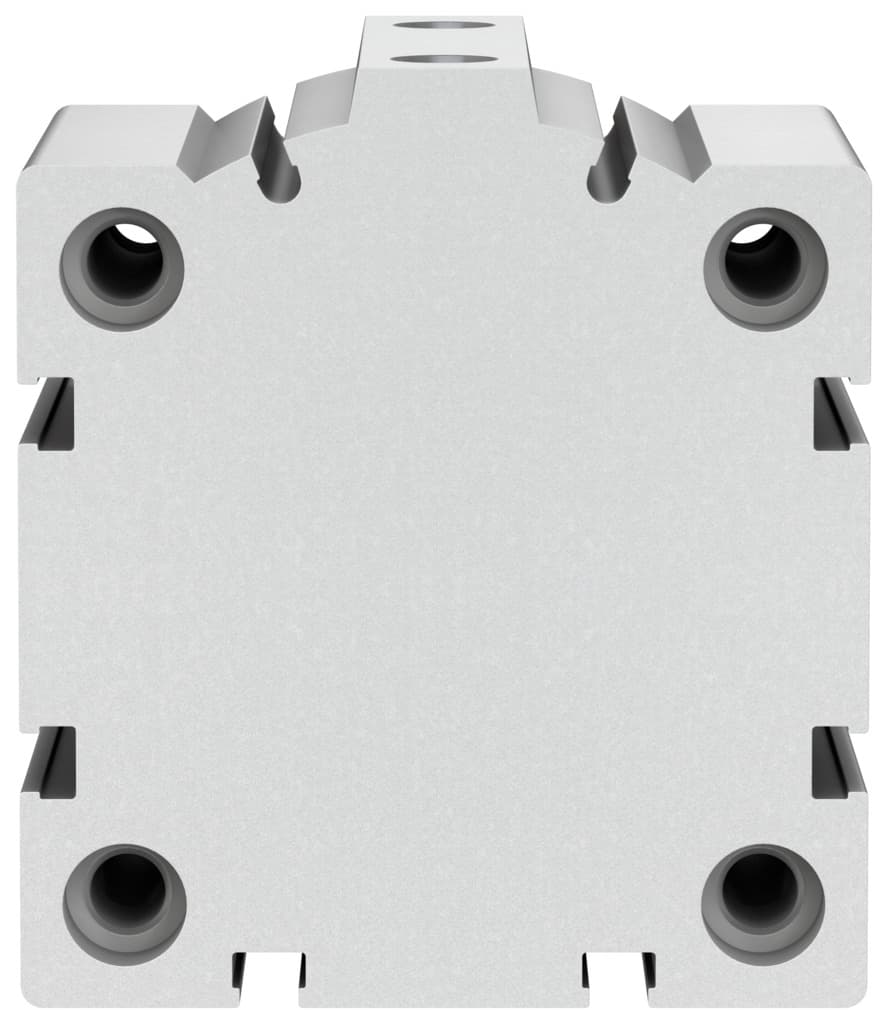

advc-63-20-a-p-a
Selling Points
- 1Compact design with a 20mm stroke and 63mm piston diameter.
- 2High forces in a compact size, suitable for precision applications.
- 3Double-acting operation with elastic cushioning at both ends.
- 4Corrosion resistance class CRC 1 and compliance with ISO6431 and VDMA24562 standards.
- 5Compatible with compressed air to ISO8573-1:2010 [7:4:4] and optional oil lubrication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 63 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 8.7psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1750N |
Theoretical force at 6 bar, advancing | 1870N | Moving mass | 166g |
Moving mass at 0?mm stroke | 142g | Additional moving mass per 10?mm stroke | 16g |
Product weight | 740g | Basic weight with 0?mm stroke | 626g |
Additional weight per 10?mm stroke | 74g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188294 |
Specifications may be subject to change without notice
