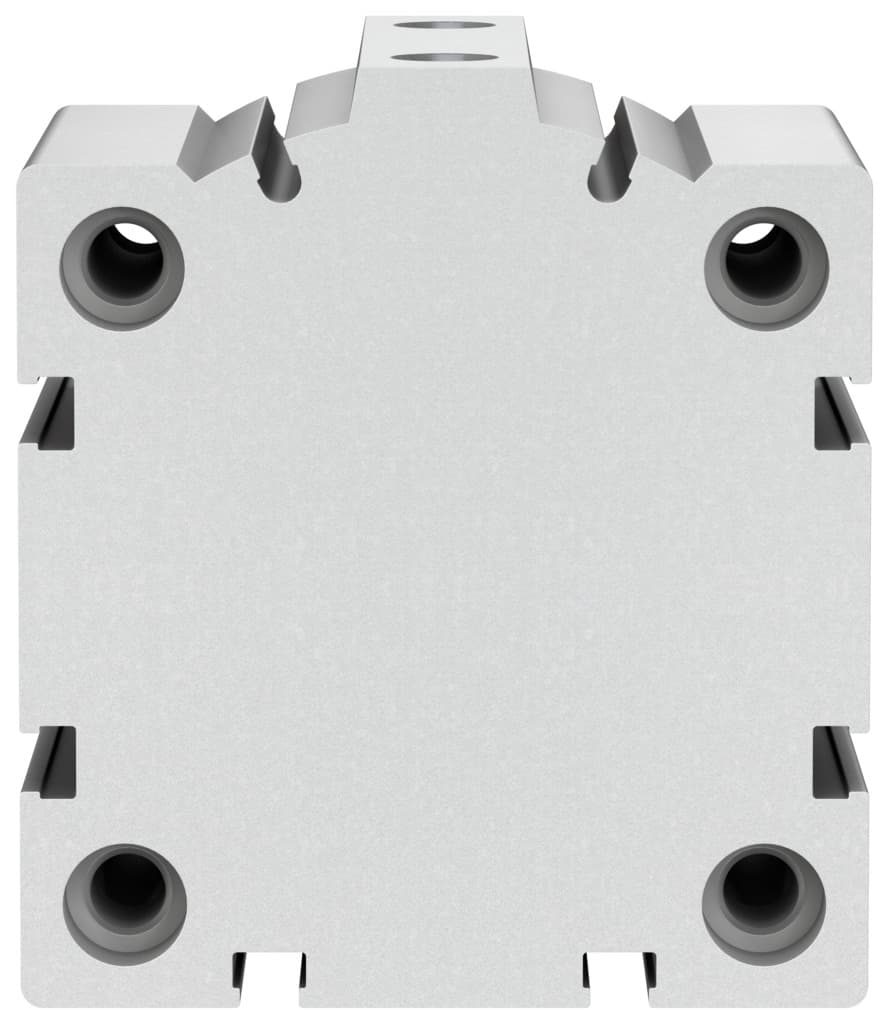

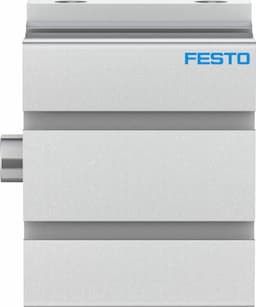

Festo ADVC-63-25-I-P Short-Stroke Cylinder - High Precision and Reliability

Selling Points

1High Precision and Reliability: Designed with ISO 6431 and VDMA 24562 standards for precise pneumatic operations.
2Versatile Mounting Options: Available with through-hole or accessory mounting for flexible installation.
3Elastic Cushioning Rings: Provides smooth operation and reduces wear on the cylinder.
4Wide Operating Pressure Range: Compatible with 0.06 MPa to 1 MPa (0.6 bar to 10 bar) operating pressures.
5Corrosion Resistance Class 1: Meets low corrosion stress requirements, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	63 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	8.7psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	1750N
Theoretical force at 6 bar, advancing	1870N	Moving mass	194g
Moving mass at 0?mm stroke	162g	Additional moving mass per 10?mm stroke	16g
Product weight	700g	Basic weight with 0?mm stroke	578g
Additional weight per 10?mm stroke	80g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188291

Specifications may be subject to change without notice
