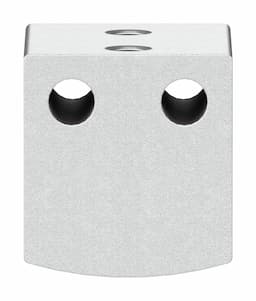

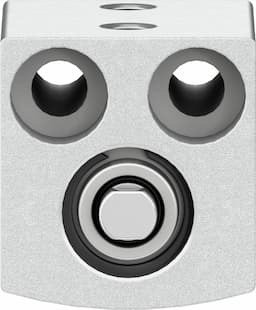

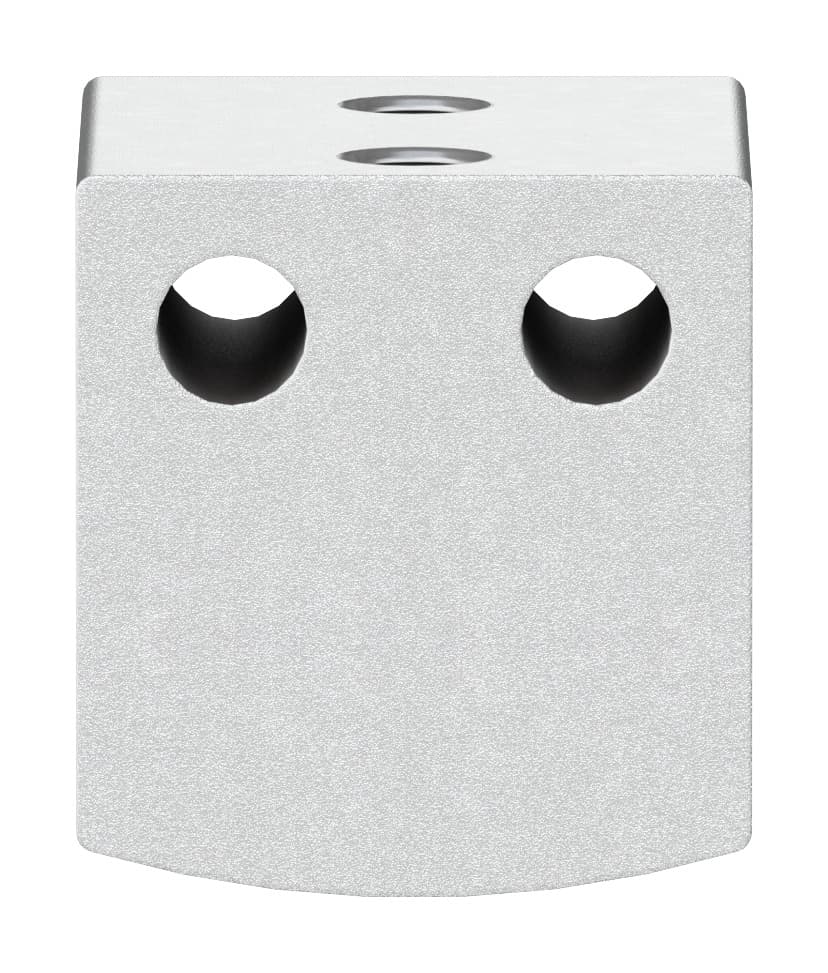

Festo ADVC-6-5-P Short-Stroke Cylinder: Precision and Efficiency

Selling Points

1The ADVC-6-5-P short-stroke cylinder from Festo offers a stroke length of 5 mm, making it perfect for applications requiring precise movements.
2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3The ADVC-6-5-P supports double-acting operation, allowing for both advancing and retracting movements, enhancing versatility in various applications.
4With a corrosion resistance class of CRC 1, this cylinder is designed to withstand low corrosion stress, ensuring reliability in demanding environments.
5The cylinder operates within a wide temperature range of -20°C to +80°C and can be used with compressed air as per ISO 8573-1:2010, making it suitable for diverse industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	6 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	21.75psi 116psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	13N	Theoretical force at 6 bar, advancing	17N
Moving mass	1.2g	Product weight	7g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	526899

Specifications may be subject to change without notice
