Product Model

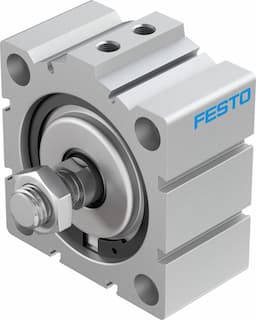

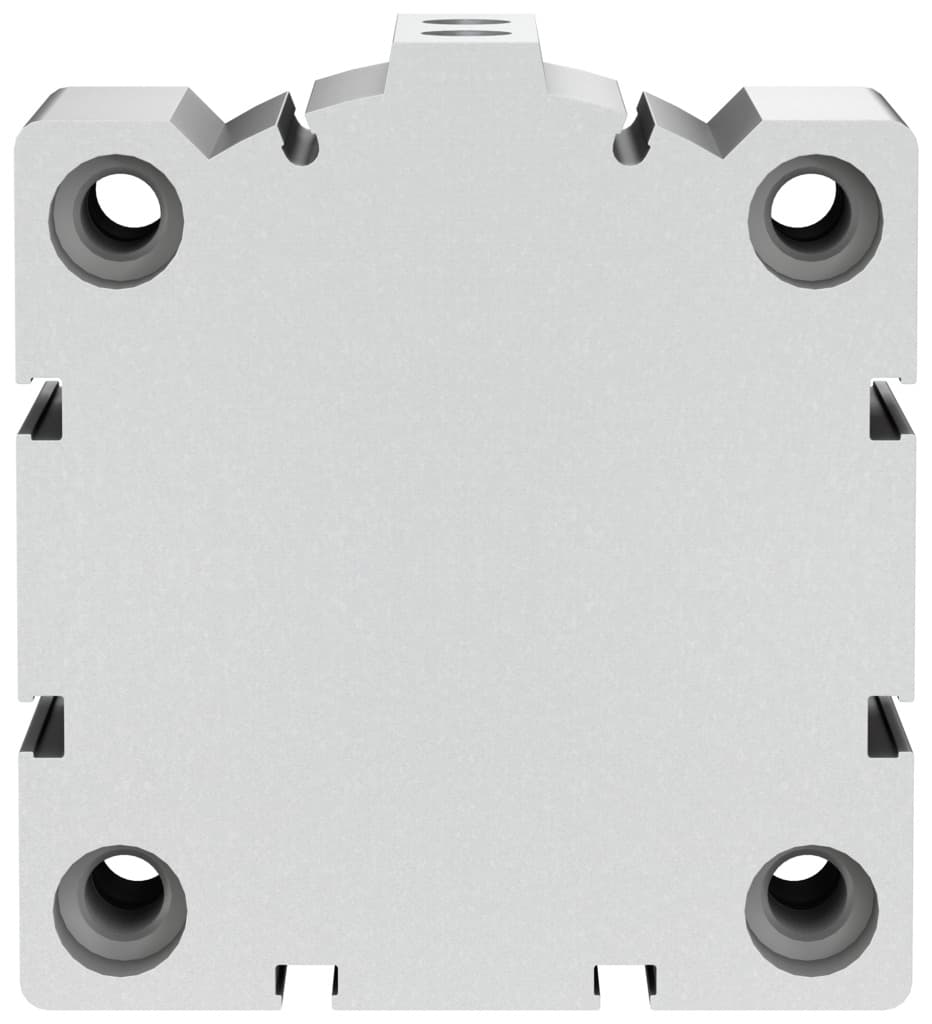

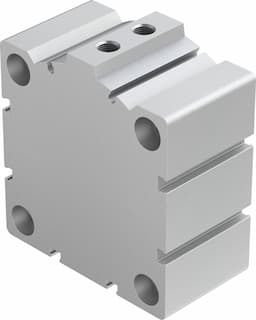

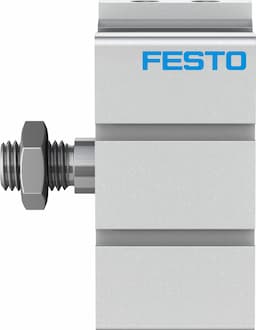

advc-80-10-a-p
Selling Points
- 110 mm stroke length for precise control in tight spaces.
- 2Made from high-quality materials, including wrought aluminum alloy and high-alloy steel, ensuring durability and reliability.
- 3Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
- 4Capable of both advancing and retracting strokes, enhancing versatility in applications.
- 5Meets ISO 6431 and VDMA 24562 standards, ensuring compatibility with various industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 80 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991227 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 2827N |
Theoretical force at 6 bar, advancing | 3016N | Moving mass | 327g |
Moving mass at 0?mm stroke | 315g | Additional moving mass per 10?mm stroke | 24g |
Product weight | 1052g | Basic weight with 0?mm stroke | 994g |
Additional weight per 10?mm stroke | 112g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188320 |
Specifications may be subject to change without notice
