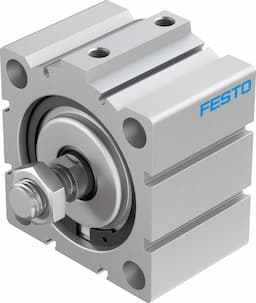

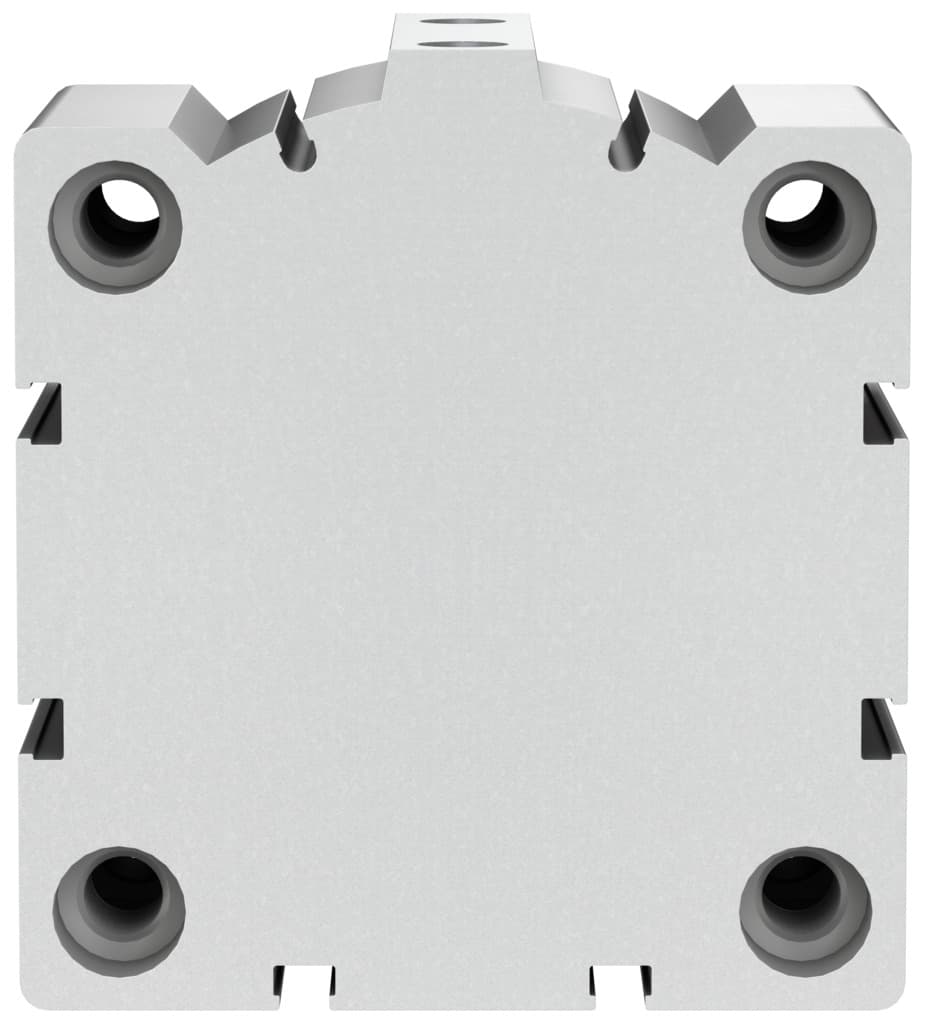

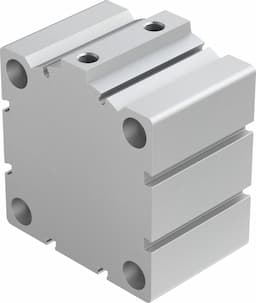

Festo ADVC-80-15-A-P-A Short-Stroke Cylinder for Precision Applications

Selling Points

1High Precision and Accuracy: Designed for precise applications with a 15mm stroke and 80mm piston diameter.
2Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation.
3Double-Acting Design: Offers double-acting functionality for efficient operation.
4Proximity Sensing: Includes proximity sensing for precise position detection.
5Corrosion Resistance: Features corrosion resistance class CRC 1, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	80 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	2827N
Theoretical force at 6 bar, advancing	3016N	Moving mass	289g
Moving mass at 0?mm stroke	265g	Additional moving mass per 10?mm stroke	24g
Product weight	1233g	Basic weight with 0?mm stroke	1119g
Additional weight per 10?mm stroke	114g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188317

Specifications may be subject to change without notice
