Product Model

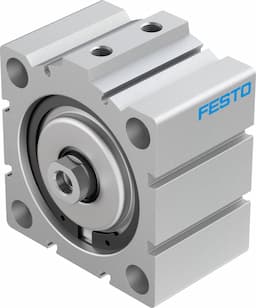

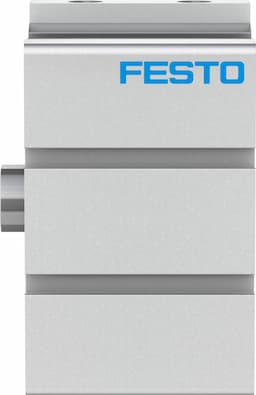

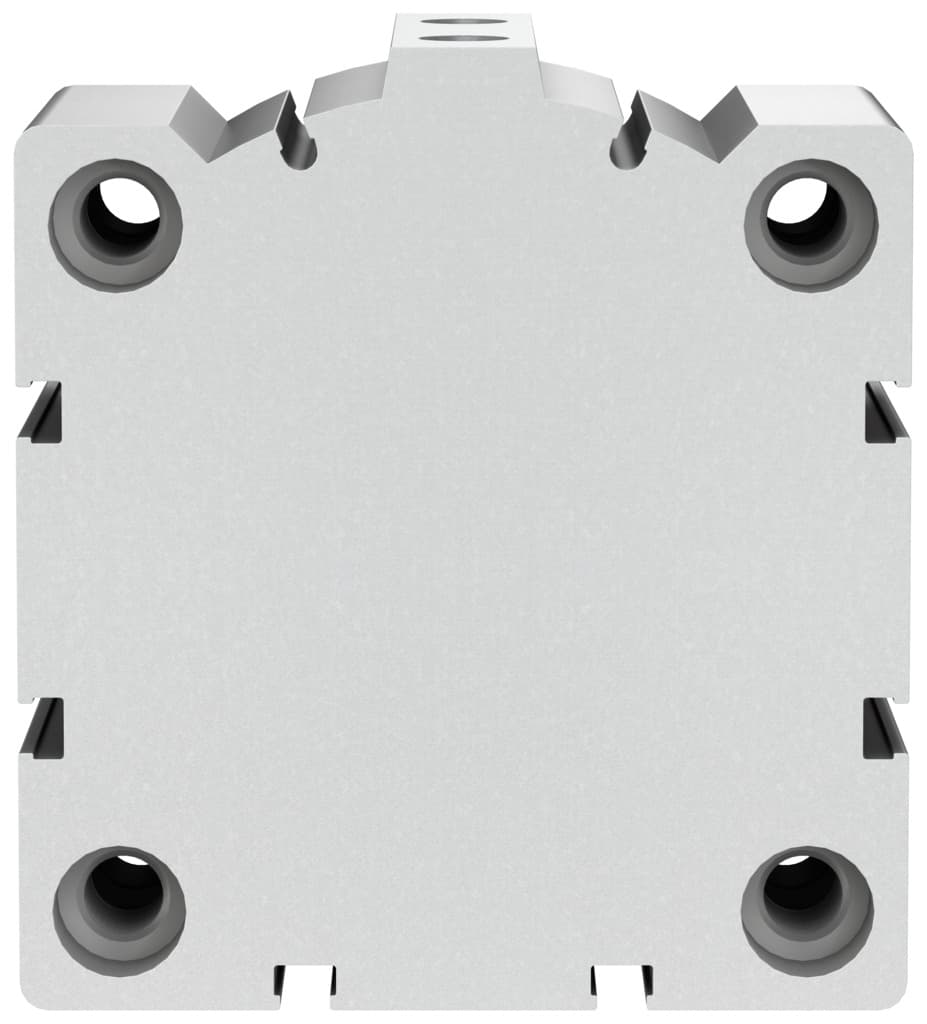

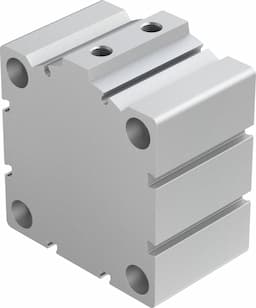

advc-80-20-i-p
Selling Points
- 1Generates up to 3,016 N at 6 bar for robust performance.
- 2Equipped with flexible cushioning rings for smooth operation and reduced friction.
- 3Meets Festo standard CRC1 for low corrosion stress in various environments.
- 4Ideal for space-constrained applications with a stroke length of 20 mm.
- 5Operates in both advancing and retracting directions for versatile use in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 80 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | None |
Symbol | 00991227 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 2827N |
Theoretical force at 6 bar, advancing | 3016N | Moving mass | 351g |
Moving mass at 0?mm stroke | 315g | Additional moving mass per 10?mm stroke | 24g |
Product weight | 1152g | Basic weight with 0?mm stroke | 994g |
Additional weight per 10?mm stroke | 112g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188314 |
