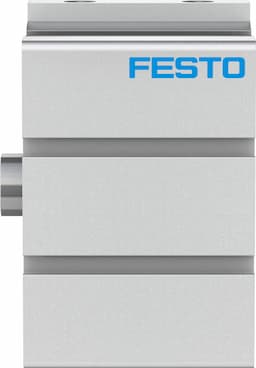

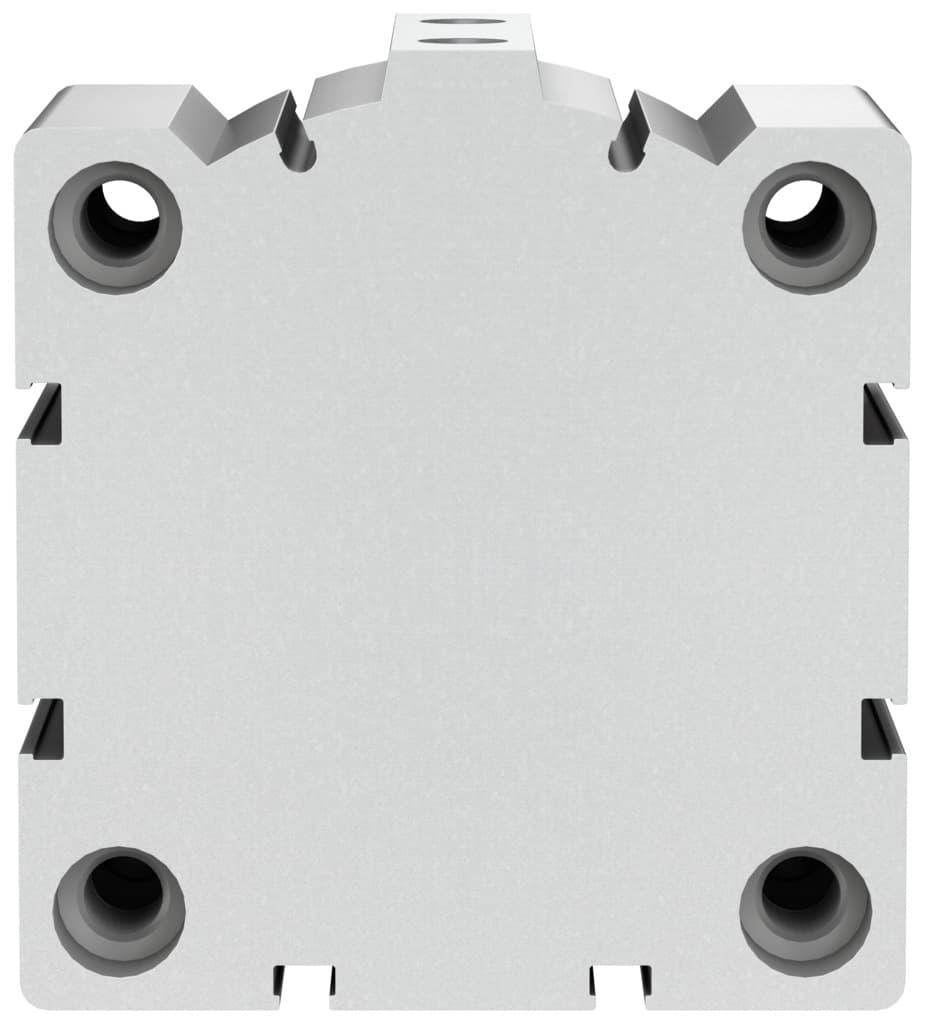

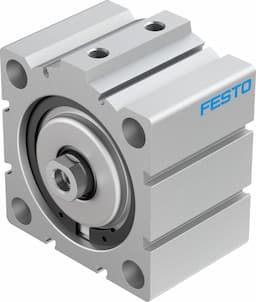

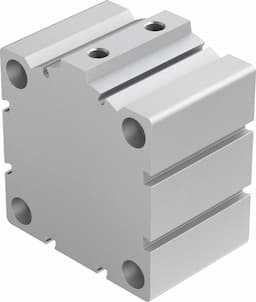

Festo ADVC-80-25-I-P: High-Performance Pneumatic Cylinder

Selling Points

1High-Performance Design: Engineered for precise movements with a stroke of 25 mm and piston diameter of 80 mm.
2Double-Acting Operation: Enables both extension and retraction, enhancing versatility in various applications.
3Flexible Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
4Robust Construction: Built with anodized aluminum cover and high-alloy steel piston rod for durability and corrosion resistance.
5Compressed Air Compatible: Operates with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	80 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	2827N
Theoretical force at 6 bar, advancing	3016N	Moving mass	363g
Moving mass at 0?mm stroke	315g	Additional moving mass per 10?mm stroke	24g
Product weight	1158g	Basic weight with 0?mm stroke	994g
Additional weight per 10?mm stroke	112g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188315

Specifications may be subject to change without notice
