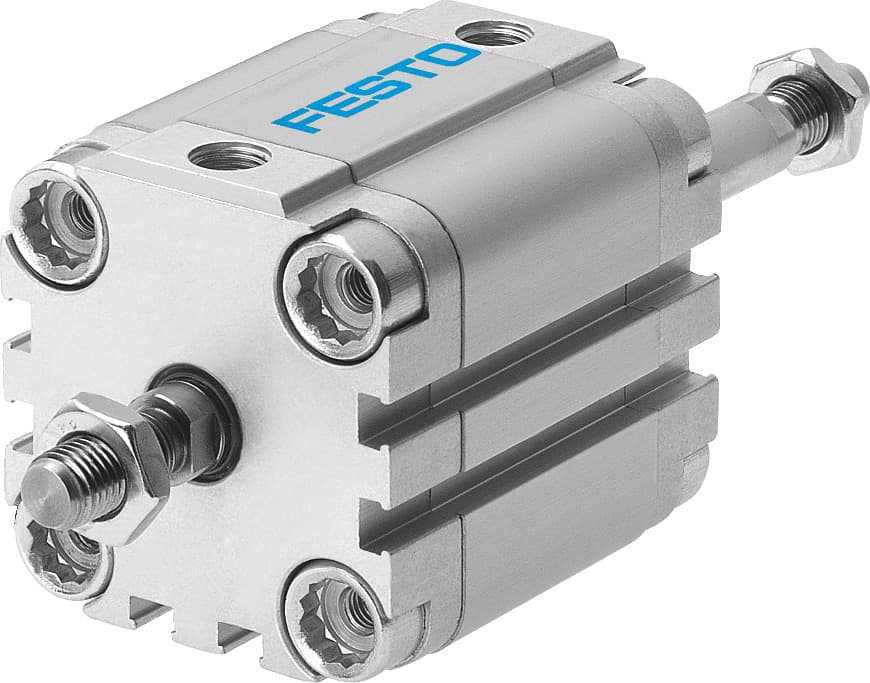

Festo ADVU-100-A-P-A-S2 Compact Cylinder Specifications

Selling Points

1The Festo ADVU-100-A-P-A-S2 compact cylinder offers a stroke range of 1 mm to 400 mm, making it versatile for various industrial applications.
2With a piston diameter of 100 mm, this cylinder provides a robust and reliable performance in double-acting operations.
3The ADVU-100-A-P-A-S2 features elastic cushioning rings/plates at both ends, ensuring smooth and controlled movements.
4The cylinder supports optional mounting positions, allowing for flexible installation in different setups.
5Operating with compressed air to ISO 8573-1:2010 standards, this cylinder ensures reliable performance in a wide range of environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	1mm 400mm	Piston diameter	100 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Piston rod end	External thread
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991219	Variants	Through piston rod
Operating pressure	11.6psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Impact energy in the end positions	1J	Theoretical force at 6 bar, retracting	4418N
Theoretical force at 6 bar, advancing	4418N	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/4	Flange screws material	Steel, galvanized
Cover material	Wrought aluminum alloy	Material of dynamic seals	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy
Manufacturer ID	156059

Specifications may be subject to change without notice
