Product Model
advu-100- -a-p-a-s20
Selling Points

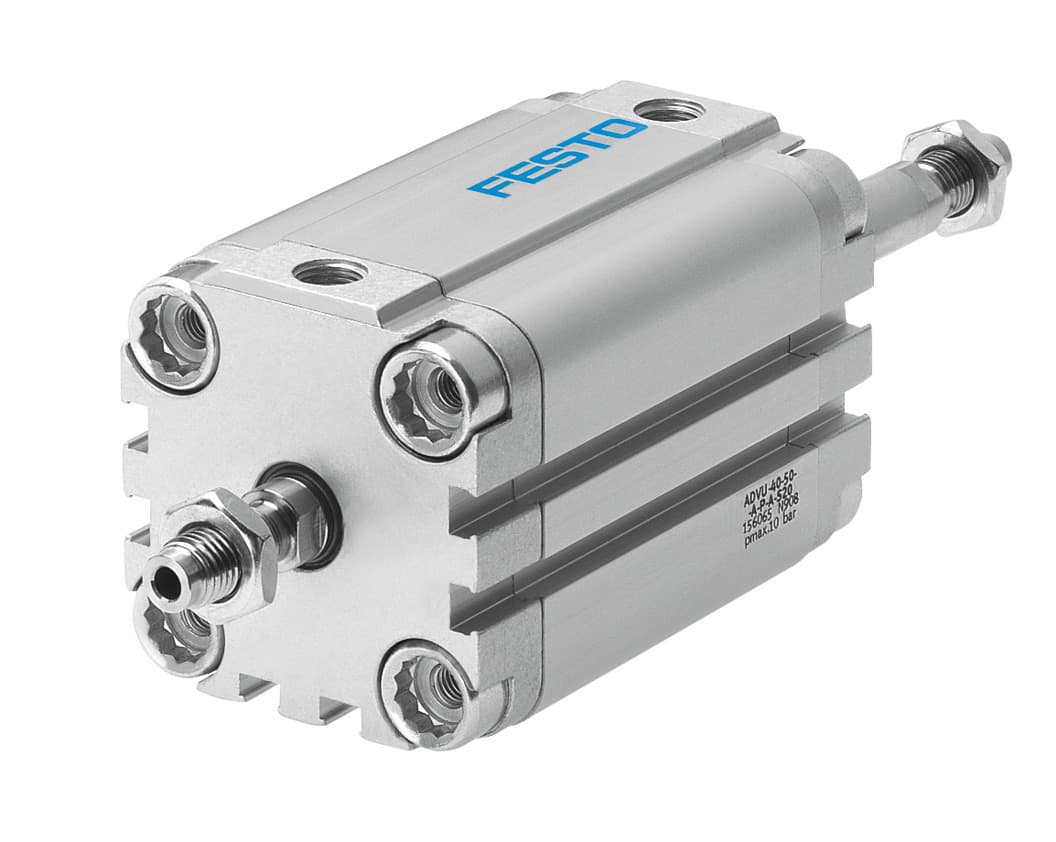

- 1The ADVU-100- -A-P-A-S20 compact air cylinder from Festo offers a versatile stroke range of 1 mm to 400 mm, making it suitable for a wide variety of applications.
- 2This cylinder features a piston diameter of 100 mm and elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
- 3The ADVU-100- -A-P-A-S20 operates under double-acting mode with an external thread at the piston rod end, enhancing its versatility and ease of integration.
- 4It supports operation with compressed air as per ISO 8573-1:2010 [7:4:4] and can be lubricated for further use, ensuring optimal performance and longevity.
- 5With a corrosion resistance class of CRC 2 - Moderate corrosion stress and an ambient temperature range of -20 °C to 80 °C, this cylinder is designed to withstand various industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 400mm | Piston diameter | 100 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991218 | Variants | Through, hollow piston rod |
Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, retracting | 4418N |
Theoretical force at 6 bar, advancing | 4418N | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/4 | Flange screws material | Steel, galvanized |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 156069 |
Specifications may be subject to change without notice
