Product Model

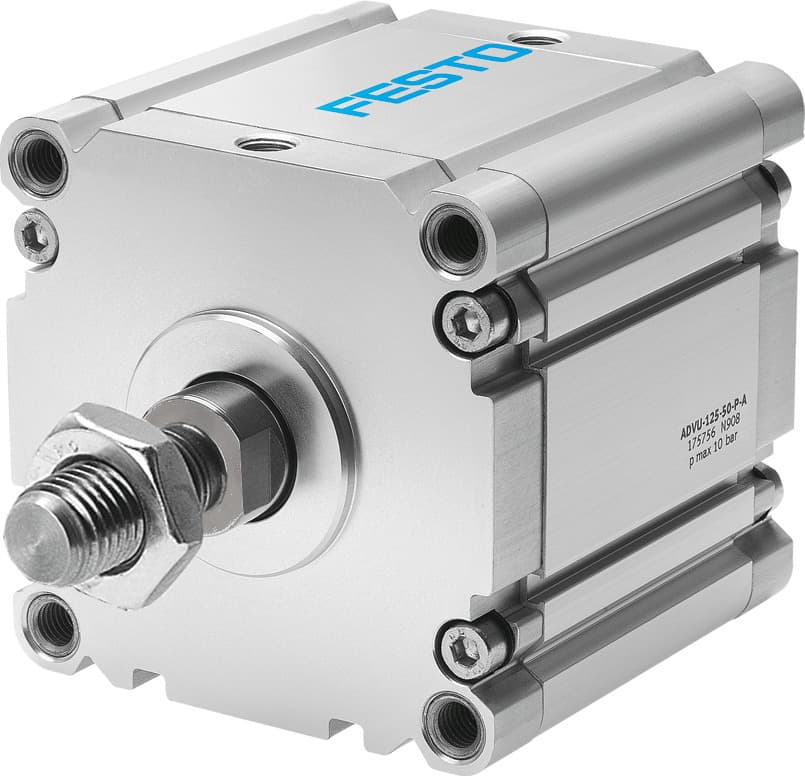

advu-125- -a-p-a-s6
Selling Points
- 1The ADVU-125- -A-P-A-S6 features a robust design with elastic cushioning rings/pads at both ends, ensuring smooth and precise operation in various applications.
- 2This compact air cylinder offers optional through-hole and accessory mounting options, providing flexibility in installation and integration.
- 3Designed for double-acting operation, the ADVU-125- -A-P-A-S6 can be used in both retracting and advancing modes, enhancing its versatility in pneumatic systems.
- 4Equipped with proximity sensing capabilities, this cylinder allows for precise position detection, making it ideal for applications requiring accurate control.
- 5With a moderate corrosion resistance class (CRC) 2, the ADVU-125- -A-P-A-S6 is suitable for applications where moderate corrosion stress is expected, ensuring reliable performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 400mm | Piston diameter | 125 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Heat-resistant seals max. 120°C |
Operating pressure | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
Impact energy in the end positions | 3.3J | Theoretical force at 6 bar, retracting | 6881N |
Theoretical force at 6 bar, advancing | 7363N | Moving mass at 0?mm stroke | 1317g |
Additional moving mass per 10?mm stroke | 63g | Basic weight with 0?mm stroke | 3426g |
Additional weight per 10?mm stroke | 168g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/4 | Flange screws material | Steel, galvanized |
Cover material | Wrought aluminum alloy | Material of dynamic seals | FPM |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 175773 |
Specifications may be subject to change without notice
