Product Model
advu-16-40-a-p-a
Selling Points

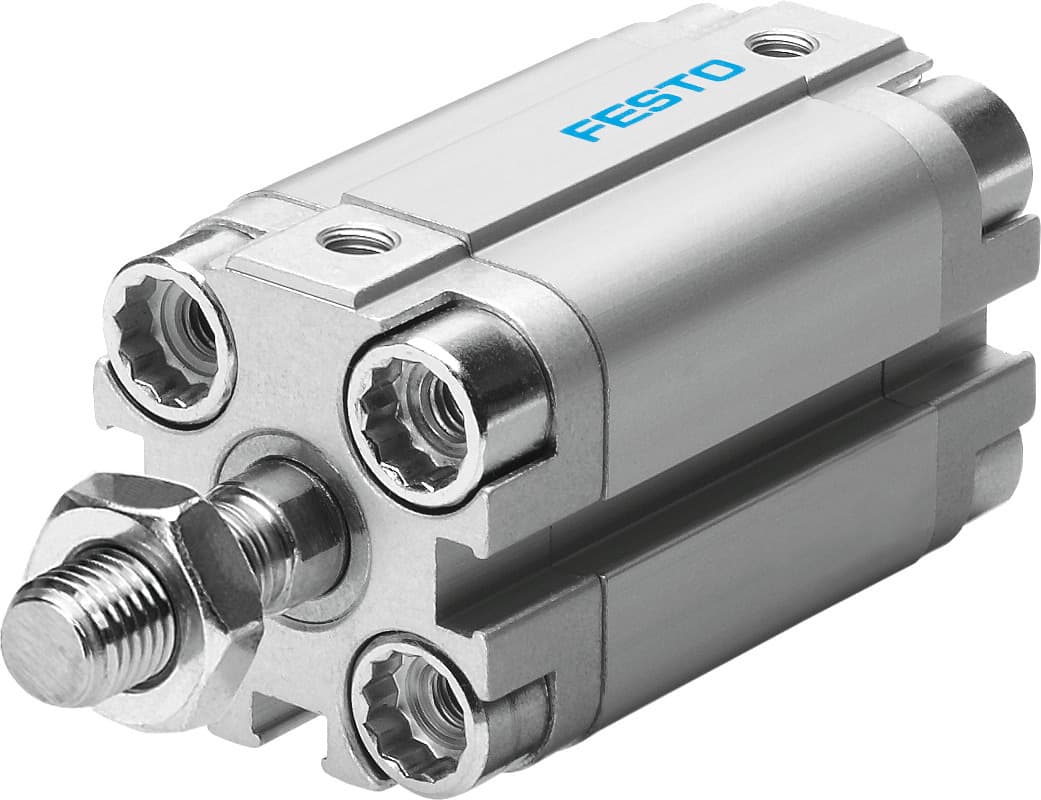

- 1The Festo ADVU-16-40-A-P-A compact air cylinder offers a stroke length of 40 mm and a piston diameter of 16 mm, making it versatile for various industrial applications.
- 2This pneumatic cylinder features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the cylinder.
- 3The ADVU-16-40-A-P-A is designed for double-acting operation, allowing for both extension and retraction strokes, enhancing its functionality in different industrial settings.
- 4Constructed with high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this compact air cylinder provides excellent durability and resistance to corrosion.
- 5With an operating pressure range of 0.12 MPa to 1 MPa (1.2 bar to 10 bar) and an ambient temperature range of -20 °C to 80 °C, the ADVU-16-40-A-P-A is suitable for a wide range of operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 17.4psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, retracting | 91N |
Theoretical force at 6 bar, advancing | 121N | Moving mass at 0?mm stroke | 12g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 89g |
Additional weight per 10?mm stroke | 15g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | M5 | Flange screws material | High-alloy stainless steel |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 156599 |
Specifications may be subject to change without notice
