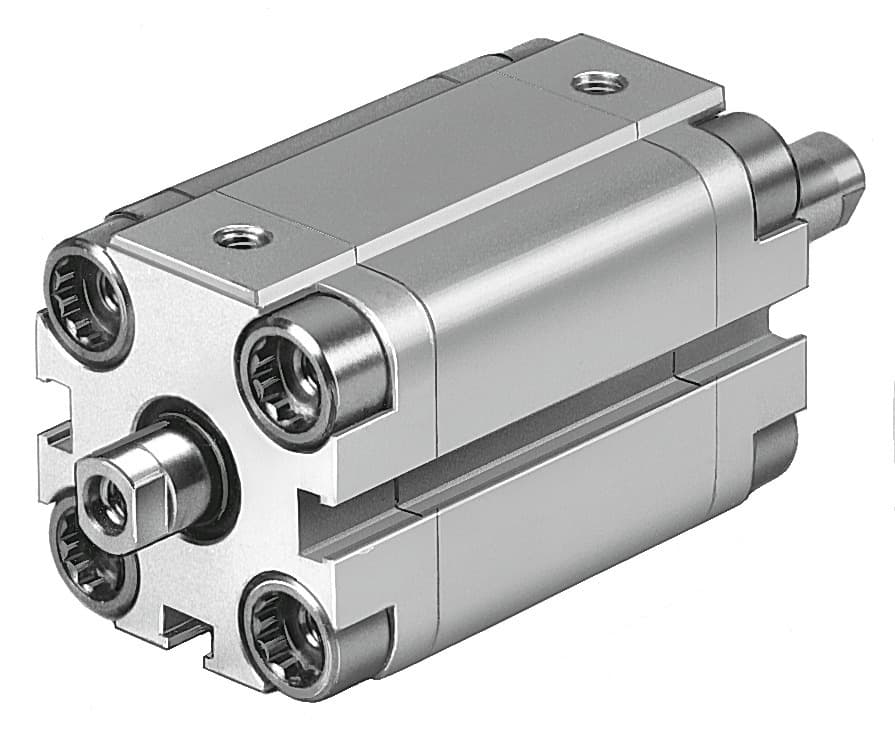

Festo ADVU-20-P-A-S20 Pneumatic Cylinder

Selling Points

1The Festo ADVU-20-P-A-S20 is designed to minimize installation space, making it perfect for applications where space is limited.
2This cylinder operates in both directions, providing flexibility and efficiency in your automation processes.
3Equipped with elastic cushioning rings/plates at both ends, it ensures smooth operation and reduces wear and tear.
4The cylinder features position detection via proximity switch, allowing for precise control and monitoring.
5Available for through-hole or accessory mounting, it offers flexibility in terms of installation and customization.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	1mm 200mm	Piston diameter	20 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Piston rod end	Internal thread
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991219	Variants	Through piston rod
Operating pressure	17.4psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.14J	Theoretical force at 6 bar, retracting	141N
Theoretical force at 6 bar, advancing	141N	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	M5	Flange screws material	Steel, galvanized
Cover material	Wrought aluminum alloy	Material of dynamic seals	NBR TPE-U(PU)
Piston rod material	High-alloy stainless steel	Material of cylinder barrel	Wrought aluminum alloy
Manufacturer ID	156012
