Product Model

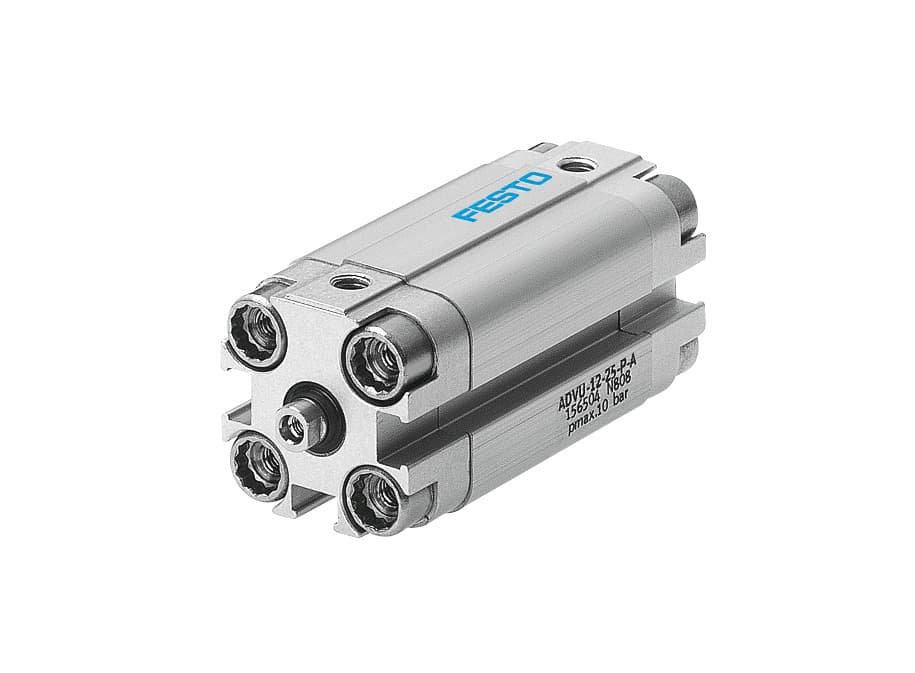

advu-25-5-p-a
Selling Points
- 1Flexible Cushioning: The ADVU-25-5-P-A features flexible cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the cylinder.
- 2Double-Acting Operation: This compact cylinder supports double-acting operation, allowing for both advancing and retracting strokes, making it versatile for various industrial applications.
- 3Proximity Sensing: Equipped with a piston-rod end for proximity sensing, this cylinder is ideal for applications requiring precise position detection.
- 4Wide Mounting Options: The ADVU-25-5-P-A offers any mode of operation and can be mounted with accessories, including through-hole options, providing flexibility in installation.
- 5High-Performance Materials: Constructed with high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this product ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 295N | Moving mass at 0?mm stroke | 26g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 180g |
Additional weight per 10?mm stroke | 28g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | M5 | Flange screws material | Steel, galvanized |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 156522 |
