Product Model

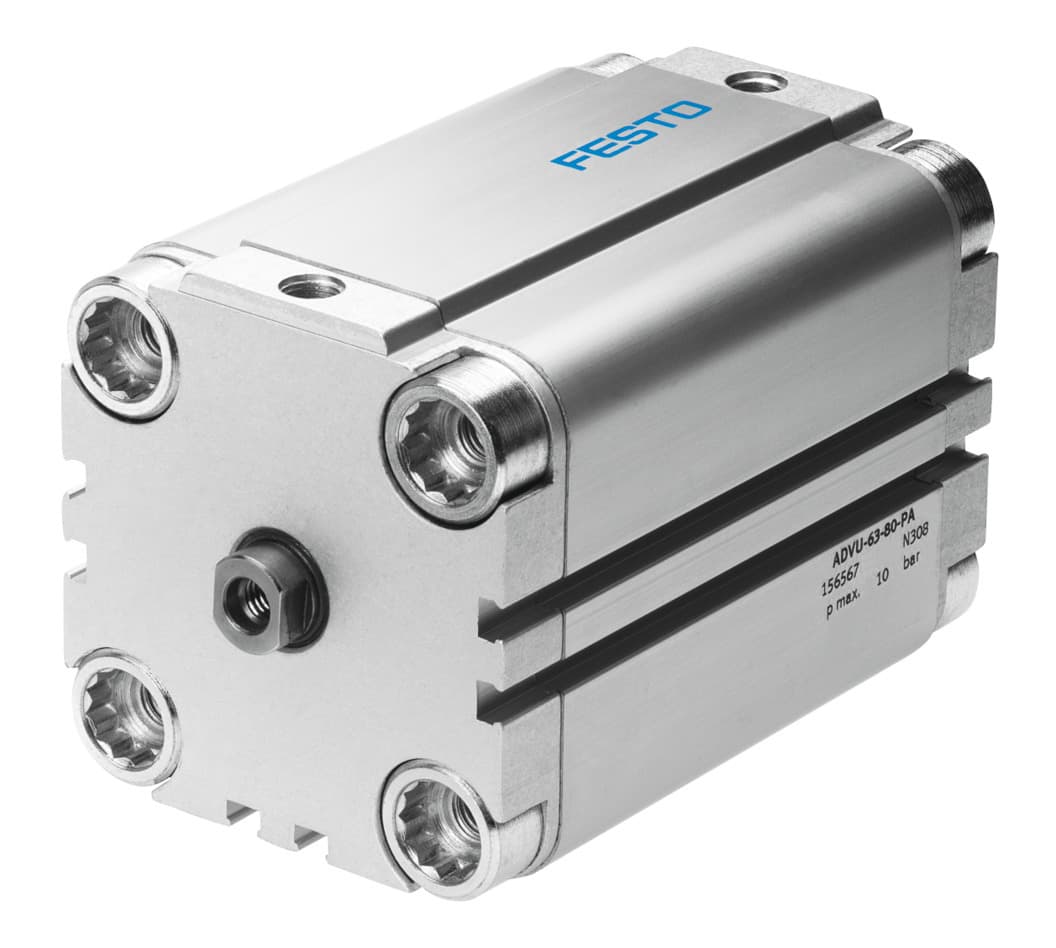

advu-50-10-p-a
Selling Points
- 1The ADVU-50-10-P-A cylinder is equipped with elastic cushioning rings/plates at both ends, ensuring smooth and controlled movement.
- 2This compact cylinder operates in a double-acting mode, allowing for precise control and efficient use in various applications.
- 3The ADVU-50-10-P-A offers flexible mounting options, making it versatile for different installation scenarios.
- 4Constructed with high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
- 5Designed to operate with compressed air to ISO 8573-1:2010 [7:4:4], providing reliable performance in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 50 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.64J | Theoretical force at 6 bar, retracting | 1057N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass at 0?mm stroke | 112g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 560g |
Additional weight per 10?mm stroke | 72g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 156550 |
Specifications may be subject to change without notice
