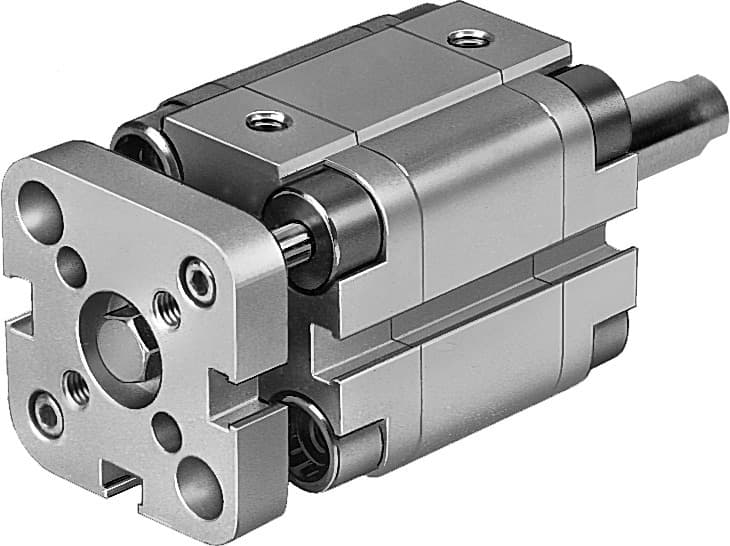

Product Model
advul-25- -p-a-s2
Selling Points
- 1The ADVUL-25-25-P-A is built with high-alloy stainless steel piston rods and galvanized steel flange screws, ensuring long-lasting performance in demanding environments.
- 2This compact air cylinder features a stroke length of 25 mm, making it perfect for applications where space is limited.
- 3The ADVUL series operates double-acting, allowing for both advancing and retracting motions with compressed air, enhancing versatility in industrial applications.
- 4With a corrosion resistance class of 2, this cylinder is suitable for moderate corrosion stress, ensuring reliable operation in various industrial settings.
- 5Available for standard shipping in just 3 days, the ADVUL-25-25-P-A is designed to meet the needs of fast-paced industrial projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 200mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991735 | Variants | Through piston rod |
Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 247N | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | M5 | Flange screws material | Steel, galvanized |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 165092 |
Specifications may be subject to change without notice
