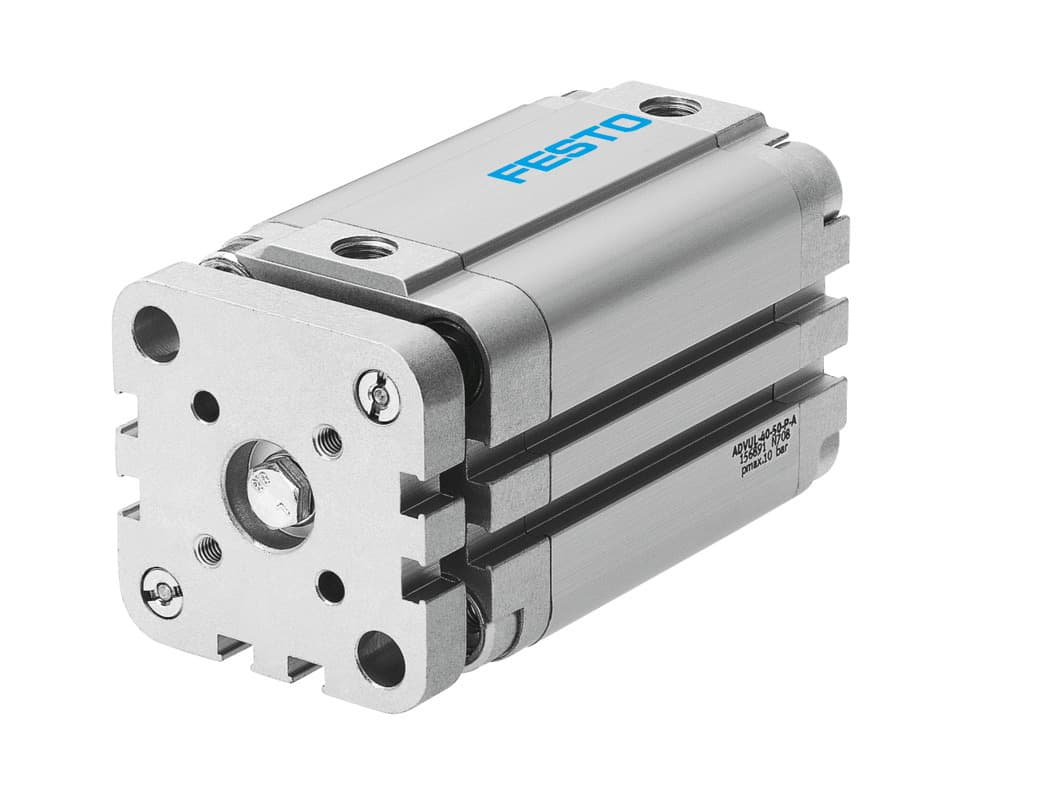

FESTO ADVUL-32 Series Compact Air Cylinders for Industrial Automation

Selling Points

1The FESTO ADVUL-32 series features high-performance compact air cylinders designed for optimal efficiency in industrial applications.
2Equipped with high-alloy stainless steel piston rods for enhanced durability and resistance to corrosion.
3Flange screws made of galvanized steel ensure robust and secure mounting, ideal for various industrial settings.
4These cylinders operate double-acting, allowing for precise control and efficient movement in both retracting and advancing directions.
5Classified as moderate corrosion stress (CRC 2), these cylinders are suitable for a wide range of industrial environments while maintaining their performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	1mm 300mm	Piston diameter	32 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991737	Variants	Heat-resistant seals max. 120°C
Protection against torsion/guide	Guide rod with yoke	Operating pressure	1bar 10bar
Mode of operation	Double-acting	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	0°C 120°C
Impact energy in the end positions	0.4J	Theoretical force at 6 bar, retracting	415N
Theoretical force at 6 bar, advancing	483N	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Flange screws material	Steel, galvanized
Cover material	Wrought aluminum alloy	Material of dynamic seals	FPM
Piston rod material	High-alloy stainless steel	Material of cylinder barrel	Wrought aluminum alloy
Manufacturer ID	156214

Specifications may be subject to change without notice
