Product Model

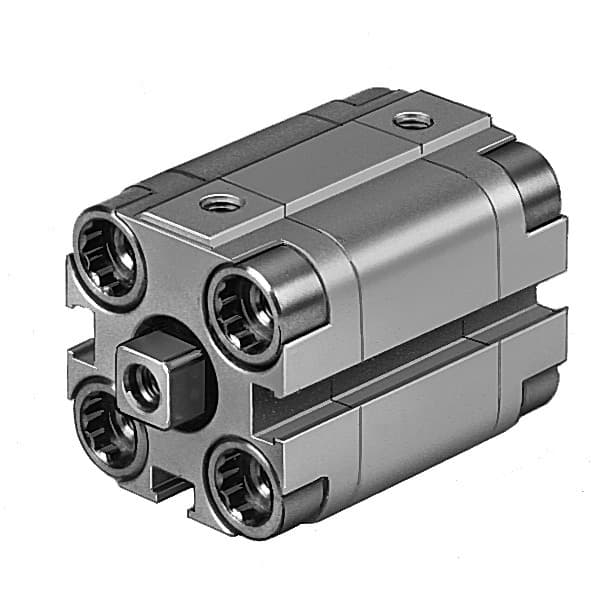

advulq-16-40-p-a
Selling Points
- 1The Festo ADVULQ-16-40-P-A operates at an operating pressure of 0.13 to 1 MPa, ensuring reliable performance in various industrial settings.
- 2Constructed with high-alloy stainless steel for the piston rod and flange screws, this cylinder offers exceptional durability and resistance to corrosion.
- 3With a stroke length of 40 mm and a piston diameter of 16 mm, the ADVULQ-16-40-P-A is designed for compact installations, making it perfect for space-constrained applications.
- 4The cylinder can be mounted in any position, providing flexibility in installation and integration into complex systems.
- 5Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces impact energy at end positions, enhancing overall safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Protection against torsion/guide | Square piston rod | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1J |
Theoretical force at 6 bar, retracting | 90N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 89g | Additional weight per 10?mm stroke | 15g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Flange screws material | High-alloy stainless steel | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156685 |
