Product Model
advulq-16- -a-p-a-s2
Selling Points

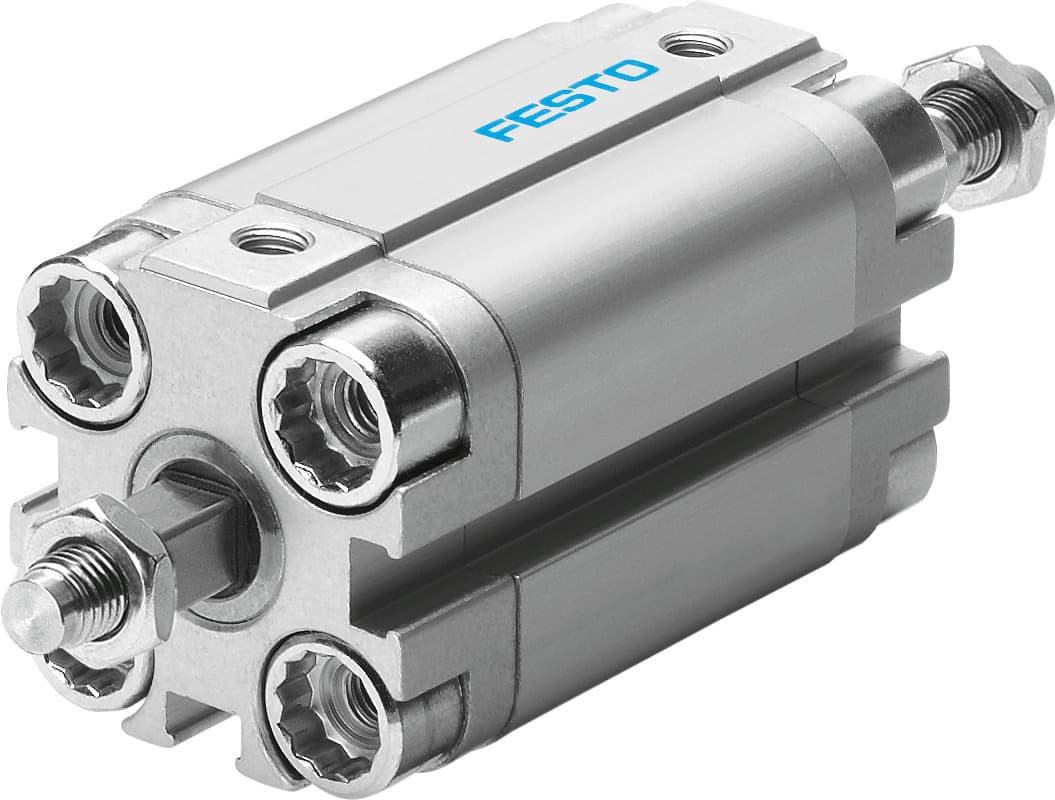

- 1The ADVULQ-16-30-P-A features high-alloy stainless steel for the piston rod and flange screws, ensuring exceptional durability and resistance to corrosion.
- 2This compact air cylinder operates in double-acting mode, allowing for precise control and efficient movement in both retracting and advancing directions.
- 3With a stroke length of 30 mm and a piston diameter of 16 mm, the ADVULQ-16-30-P-A is designed for compact applications where space is limited.
- 4The cylinder operates within a pressure range of 0.13 to 1 MPa, making it versatile for various industrial applications.
- 5The cylinder barrel is made from wrought aluminum alloy, providing moderate corrosion resistance (CRC 2) and ensuring reliable performance in challenging environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 200mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991219 | Variants | Through piston rod |
Protection against torsion/guide | Square piston rod | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1J |
Theoretical force at 6 bar, retracting | 90N | Theoretical force at 6 bar, advancing | 90N |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Flange screws material | High-alloy stainless steel | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156151 |
Specifications may be subject to change without notice
