Product Model
advulq-20- -p-a-s2
Selling Points

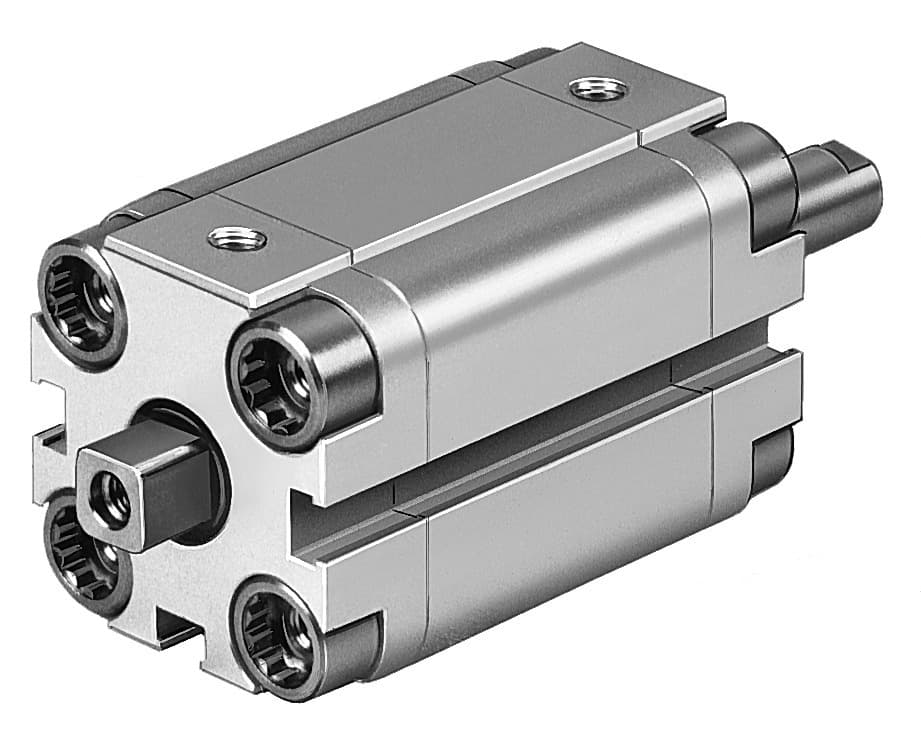

- 1The Festo ADVULQ-20-P-A-S2 features a compact design, making it ideal for space-constrained applications.
- 2Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
- 3Designed for double-acting operation, allowing for both forward and reverse motion with compressed air.
- 4Includes position detection via proximity switch for precise control and monitoring.
- 5Offers optional mounting positions, allowing for flexible installation options to suit various application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 200mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991219 | Variants | Through piston rod |
Protection against torsion/guide | Square piston rod | Operating pressure | 17.4psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.14J |
Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 141N |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156112 |
Specifications may be subject to change without notice
