Product Model
advulq-80- -a-p-a-s20
Selling Points

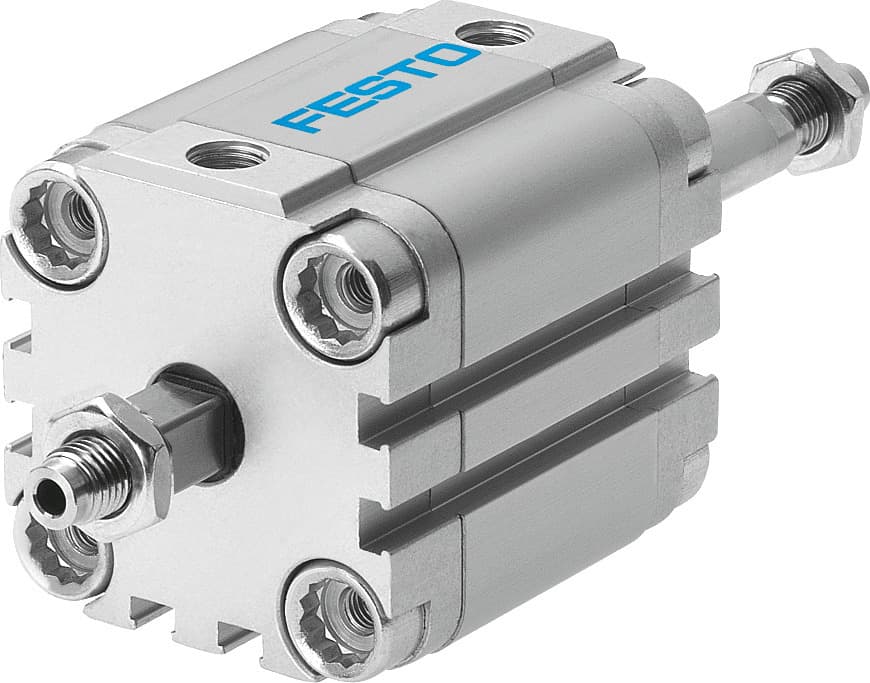

- 1The Festo ADVULQ-80-20-A-P-A compact cylinder offers a stroke length of 20 mm, making it ideal for applications requiring precise movement control.
- 2With a piston diameter of 80 mm, this cylinder provides a robust and reliable operation, ensuring consistent performance in various environments.
- 3Equipped with elastic cushioning rings/plates at both ends, the ADVULQ-80-20-A-P-A ensures smooth operation and reduces wear and tear on the cylinder.
- 4The cylinder features a double-acting mode of operation, allowing for both extension and retraction strokes, enhancing its versatility in different applications.
- 5Designed for use with compressed air according to ISO 8573-1:2010 [7:4:4], this cylinder supports oiled operation for extended lifespan and optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 400mm | Piston diameter | 80 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991218 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.075J |
Theoretical force at 6 bar, retracting | 2827N | Theoretical force at 6 bar, advancing | 2827N |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156168 |
Specifications may be subject to change without notice
