Product Model
aen-100- -
Selling Points

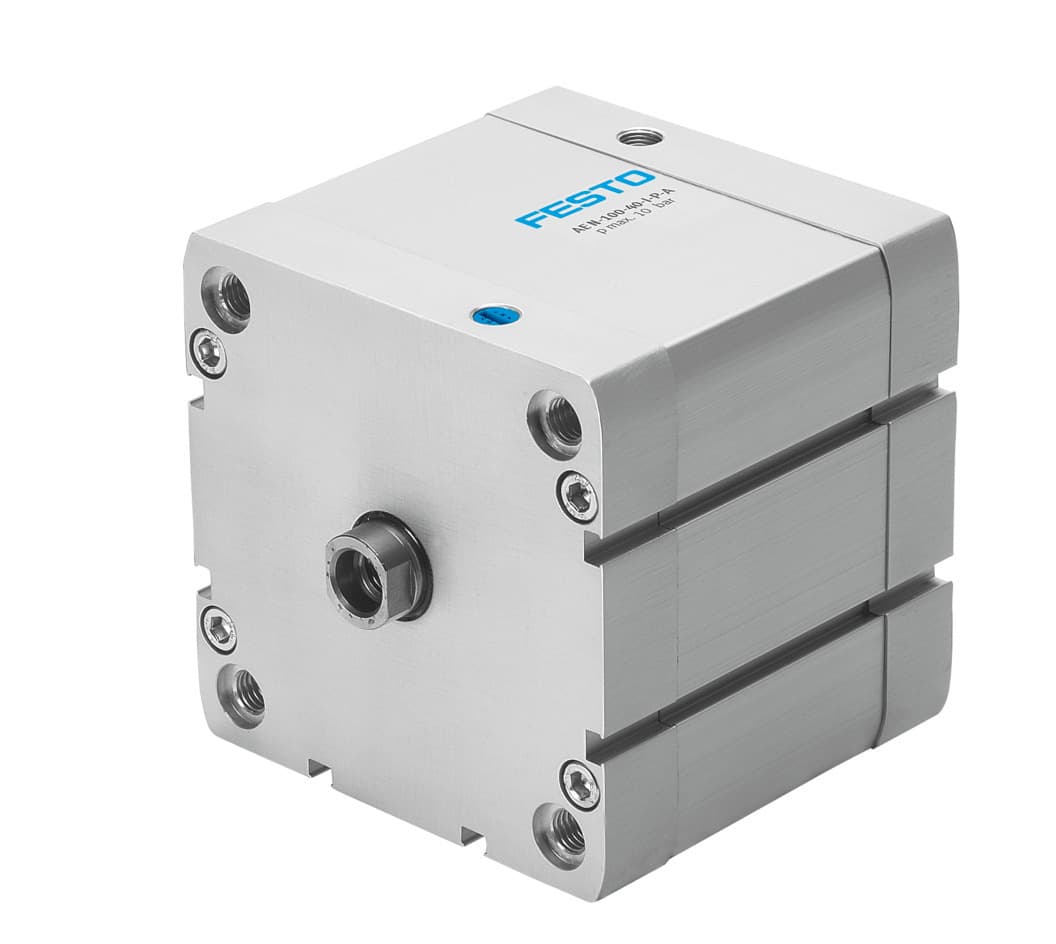

- 1The Festo AEN-100 pneumatic cylinder is designed to minimize installation space, making it ideal for applications where space is limited.
- 2Equipped with self-adjusting cushioning at both ends, this cylinder ensures smooth operation and reduces noise and vibration.
- 3The magnetic piston rod allows for contactless position detection via proximity sensors, enhancing precision and reliability.
- 4Built with high-corrosion protection, this cylinder can withstand outdoor exposure under moderate corrosive conditions, ensuring durability in harsh environments.
- 5Available in various stroke lengths and piston diameters, the Festo AEN-100 is versatile and can be configured to suit a broad range of applications, from manufacturing to industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 100 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Conforms to standard | ISO 21287 | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Pushing Single-acting Pulling |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 4230N |
Theoretical force at 6 bar, advancing | 4416N | Weight surcharge per 10 mm piston rod extension | 25g |
Weight surcharge per 10 mm piston rod thread extension | 16g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536423 |
Specifications may be subject to change without notice
