Product Model
aen-16- -
Selling Points

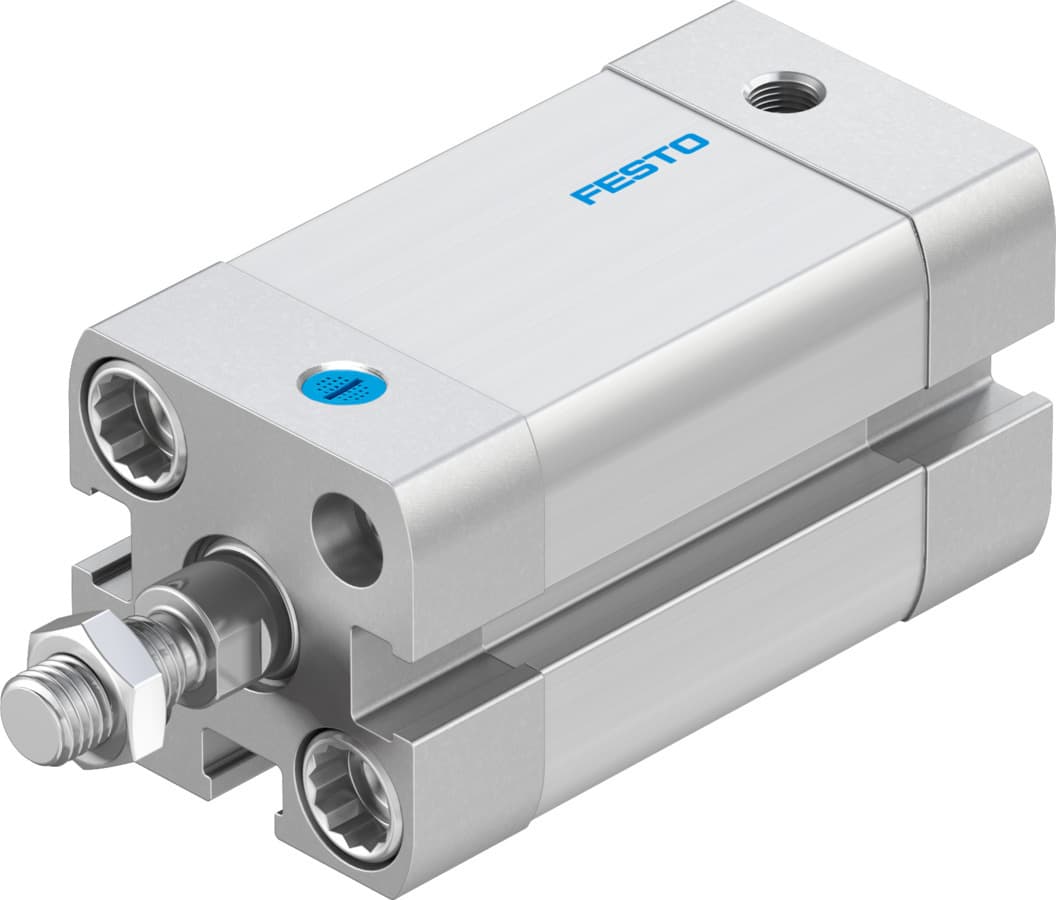

- 1The Festo AEN-16- compact cylinder is engineered for high-performance pneumatic applications, ensuring reliable and efficient operation in various industrial settings.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder reduces noise and vibration, providing a smoother operation and longer service life.
- 3The AEN-16- cylinder offers flexible mounting options, including through-hole, female thread, and accessories, allowing for easy integration into diverse application environments.
- 4Constructed with anodized wrought aluminum alloy and high-alloy stainless steel, the cylinder provides excellent corrosion resistance, ensuring durability in harsh conditions.
- 5Designed with a compact and lightweight structure, the AEN-16- cylinder is ideal for applications requiring minimal space and reduced weight, enhancing overall system efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 16 mm |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Pushing Single-acting Pulling |
Structural design | Piston Piston rod Profile barrel | Position sensing | For proximity sensor |
Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end | Operating pressure | 21.75psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 58N |
Theoretical force at 6 bar, advancing | 88N | Weight surcharge per 10 mm piston rod extension | 4g |
Weight surcharge per 10 mm piston rod thread extension | 2g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536415 |
Specifications may be subject to change without notice
