Product Model
aen-40- -
Selling Points

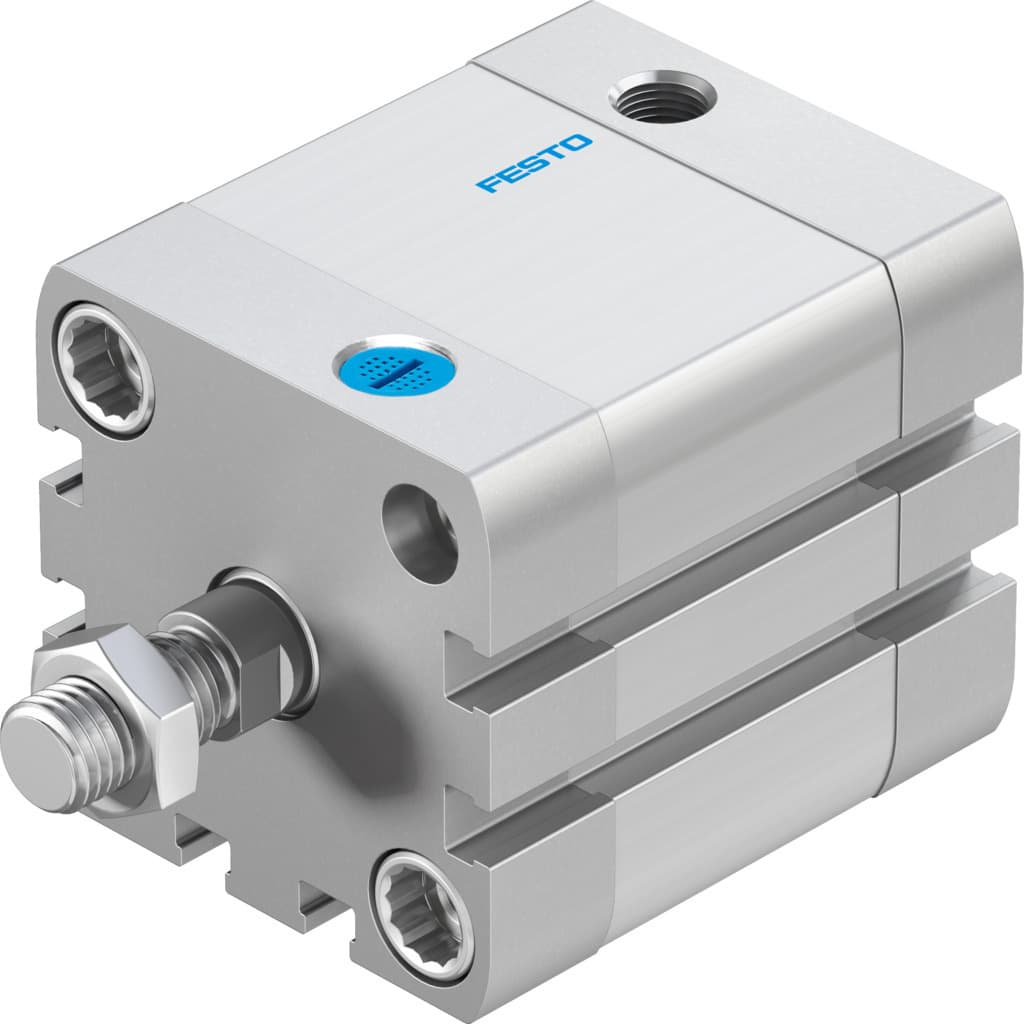

- 1The Festo AEN-40 pneumatic compact cylinder is built with high-alloy stainless steel piston rods and anodized wrought aluminum alloy housing, ensuring durability and longevity.
- 2This cylinder can be mounted in any position, making it adaptable to a wide range of applications. It also supports through-hole and female thread mounting options.
- 3Equipped with elastic cushioning rings/pads at both ends, the AEN-40 provides excellent energy absorption, reducing noise and vibration in medium to heavy load applications.
- 4With a stroke length ranging from 1 mm to 25 mm and a piston diameter of 40 mm, the AEN-40 offers precise control over linear motion, making it suitable for high-speed applications.
- 5The Festo AEN-40 cylinder conforms to the ISO 8573-1:2010 standard for compressed air quality and is RoHS compliant, ensuring it meets stringent regulatory requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 40 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Conforms to standard | ISO 21287 | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Pushing Single-acting Pulling |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 606N |
Theoretical force at 6 bar, advancing | 676N | Weight surcharge per 10 mm piston rod extension | 9g |
Weight surcharge per 10 mm piston rod thread extension | 6g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536419 |
Specifications may be subject to change without notice
