Product Model
aen-63- -
Selling Points

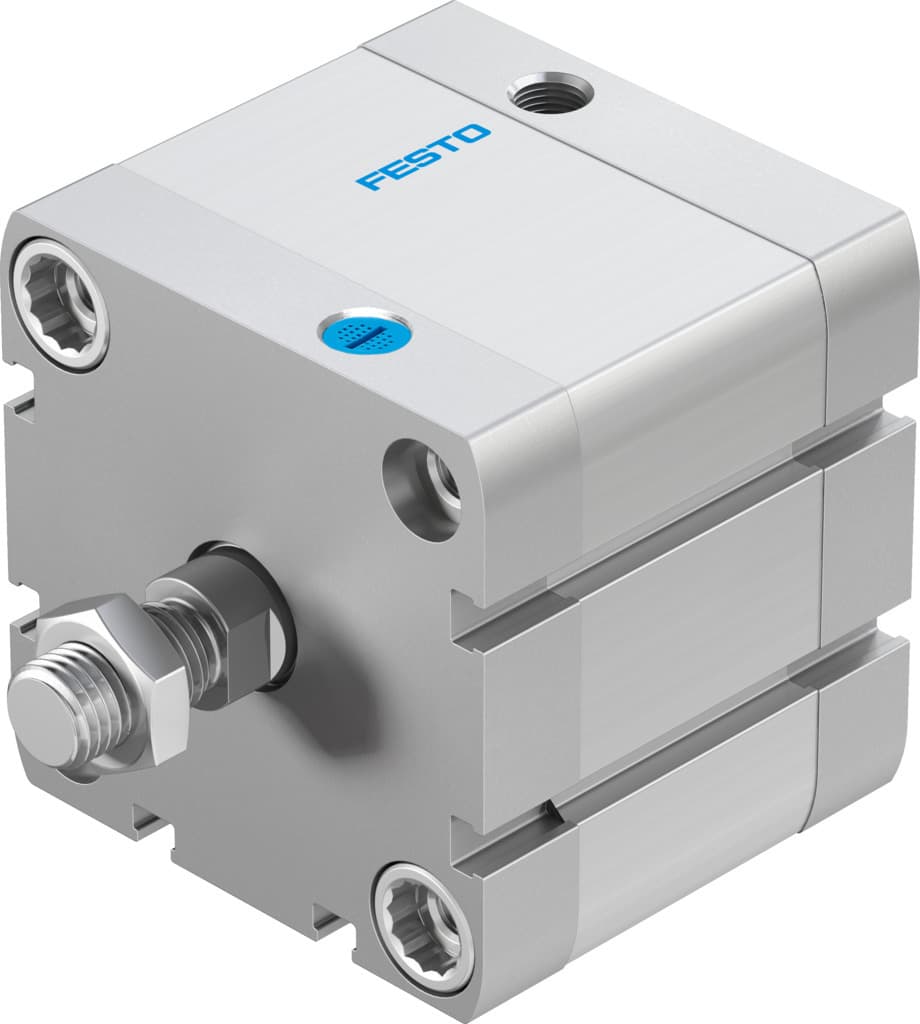

- 1The Festo AEN-63- compact pneumatic cylinder offers a stroke length of 1 mm to 25 mm, ensuring precise movement and control in various industrial applications.
- 2With a piston diameter of 63 mm and elastic cushioning rings/plates at both ends, this cylinder provides robust construction and reliable operation.
- 3The cylinder can be mounted in any position, offering flexibility in system design and integration.
- 4Made from anodised wrought aluminium alloy for the housing and high-alloy stainless steel for the piston rod, ensuring durability and resistance to corrosion.
- 5Equipped with a proximity switch for precise position detection, enhancing the accuracy and efficiency of your automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 63 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Conforms to standard | ISO 21287 | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Pushing Single-acting Pulling |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 1617N |
Theoretical force at 6 bar, advancing | 1737N | Weight surcharge per 10 mm piston rod extension | 16g |
Weight surcharge per 10 mm piston rod thread extension | 9g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536421 |
Specifications may be subject to change without notice
