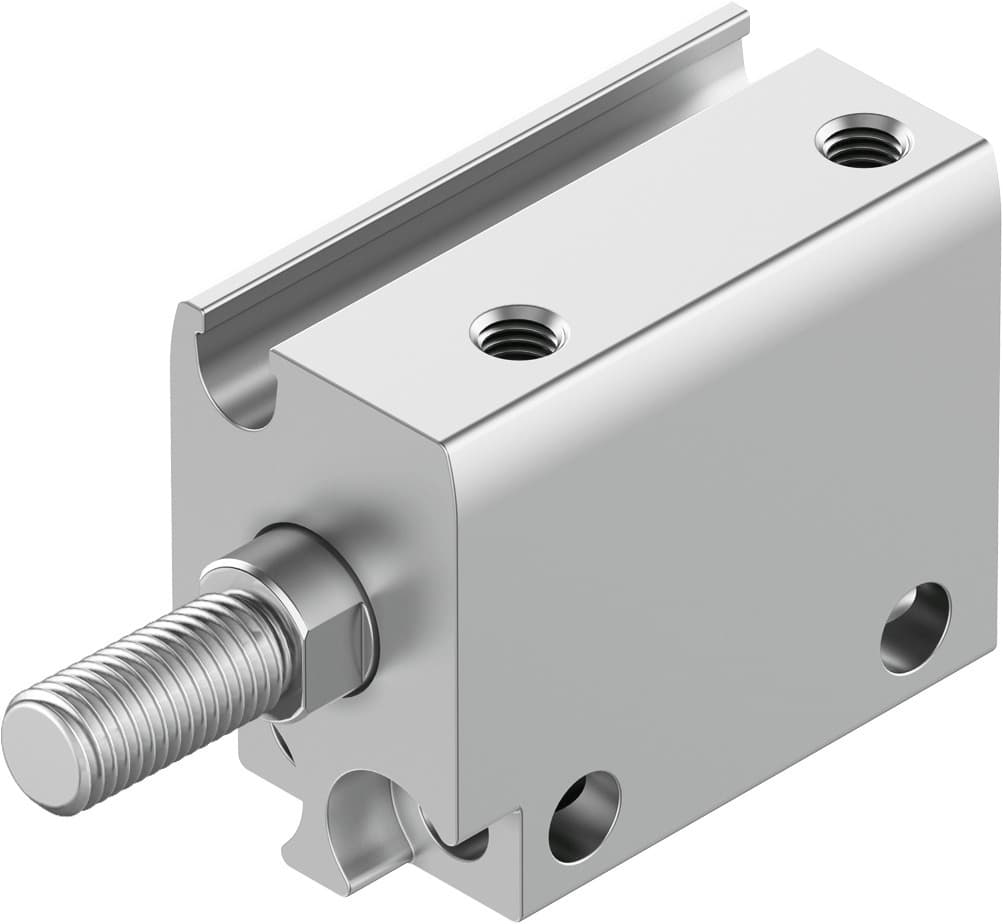

Product Model
aen-s-10-10-a-a
Selling Points
- 1Lightweight and space-efficient, perfect for tight spaces.
- 2Ensures accurate and reliable operation in demanding environments.
- 3Built with high-quality materials for long-lasting performance.
- 4Mounts via through-hole for straightforward installation.
- 5Compatible with compressed air, suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 10 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991201 | Variants | Piston rod at one end |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Impact energy in the end positions | 0.012J | Theoretical force at 6 bar, retracting | 5.3N |
Theoretical force at 6 bar, advancing | 41.7N | Moving mass | 5.7g |
Product weight | 19g | Type of mounting | With through-hole |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8080585 |
Specifications may be subject to change without notice
