Product Model

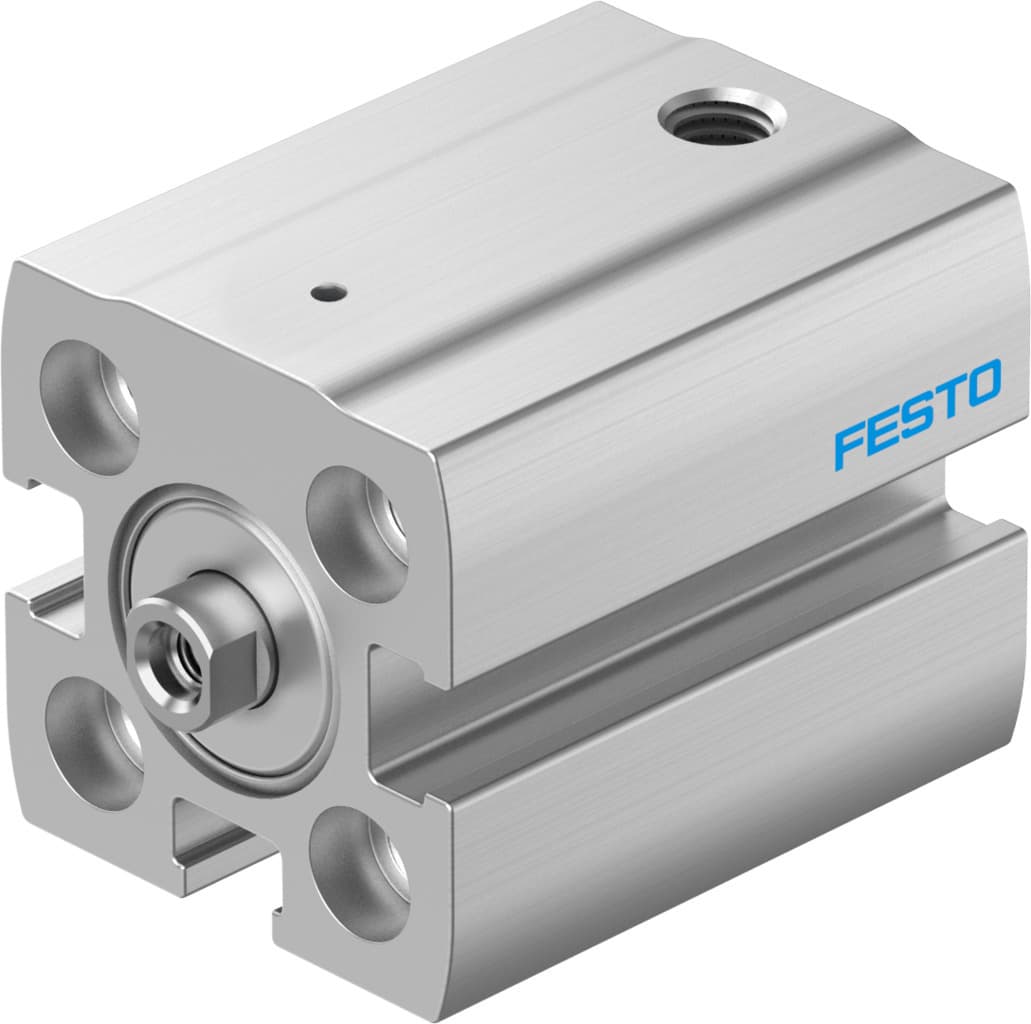

aen-s-12-10-i-p
Selling Points
- 1Compact design with a stroke of 10 mm and piston diameter of 12 mm.
- 2Elastic cushioning rings/plates at both ends for smooth operation.
- 3Operating pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar) with compressed air.
- 4High-alloy stainless steel piston rod for durability and corrosion resistance.
- 5Mounting position optional with through-hole or internal thread options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 12 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Symbol | 00991730 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 0°C 60°C | Impact energy in the end positions | 0.022J |
Theoretical force at 6 bar, retracting | 8N | Theoretical force at 6 bar, advancing | 60N |
Moving mass at 0?mm stroke | 3.5g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 26g | Additional weight per 10?mm stroke | 15g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, anodized |
Material of dynamic seals | NBR | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8076476 |
Specifications may be subject to change without notice
