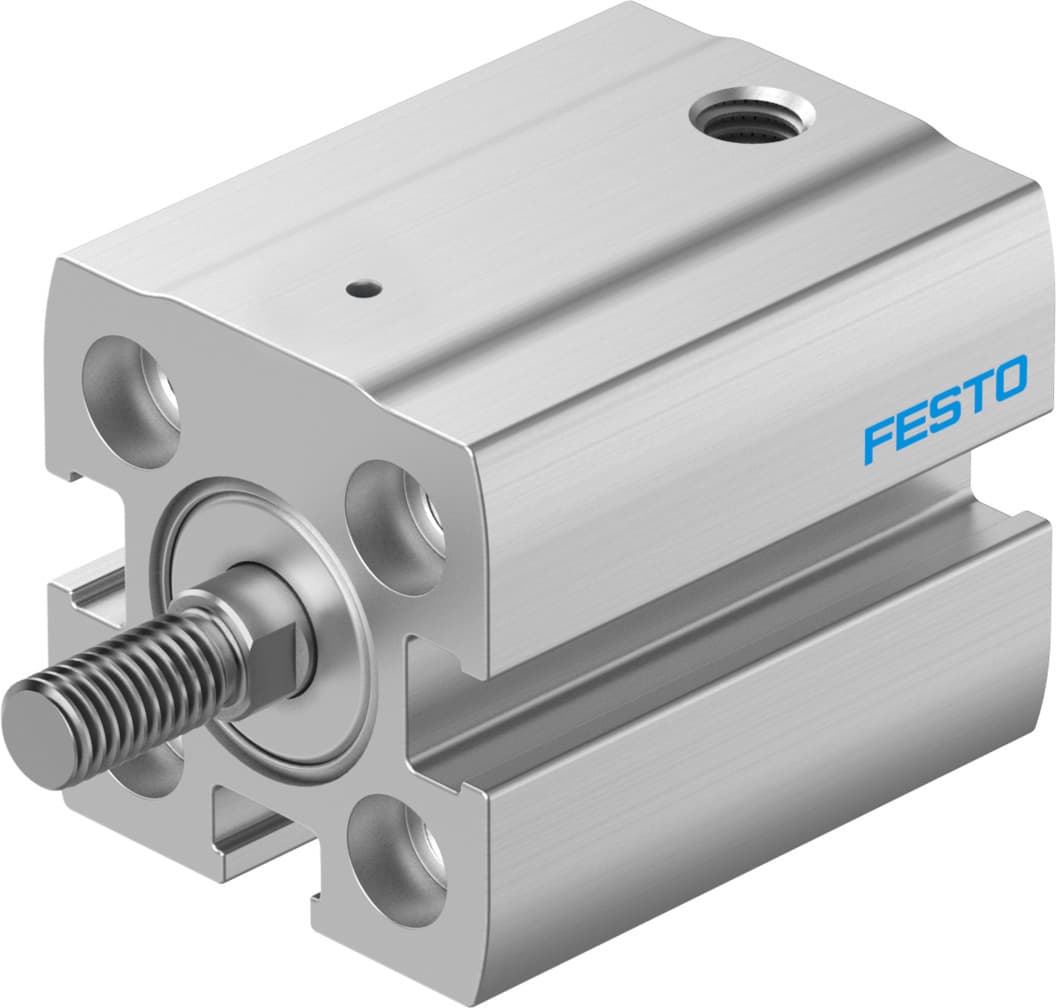

Festo AEN-S-12-5-A-P Compact Cylinder - High-Quality Pneumatic Solution

Selling Points

1Ideal for space-constrained applications with a 5 mm stroke and 12 mm piston diameter.
2Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced noise.
3Ensures durability and resistance to corrosion, suitable for harsh environments.
4Can be mounted with through-hole, internal thread, or accessories for flexible installation.
5Meets ISO 8573-1:2010 for compressed air quality and ISO 21287 for compact cylinders, ensuring high performance and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	12 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing	Piston rod end	External thread
Structural design	Piston Piston rod	Symbol	00991730
Variants	Piston rod at one end	Operating pressure	1bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	0°C 60°C	Impact energy in the end positions	0.022J
Theoretical force at 6 bar, retracting	6N	Theoretical force at 6 bar, advancing	60N
Moving mass at 0?mm stroke	3.5g	Additional moving mass per 10?mm stroke	2g
Basic weight with 0?mm stroke	26g	Additional weight per 10?mm stroke	15g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy, anodized
Material of dynamic seals	NBR	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	8092150

Specifications may be subject to change without notice
