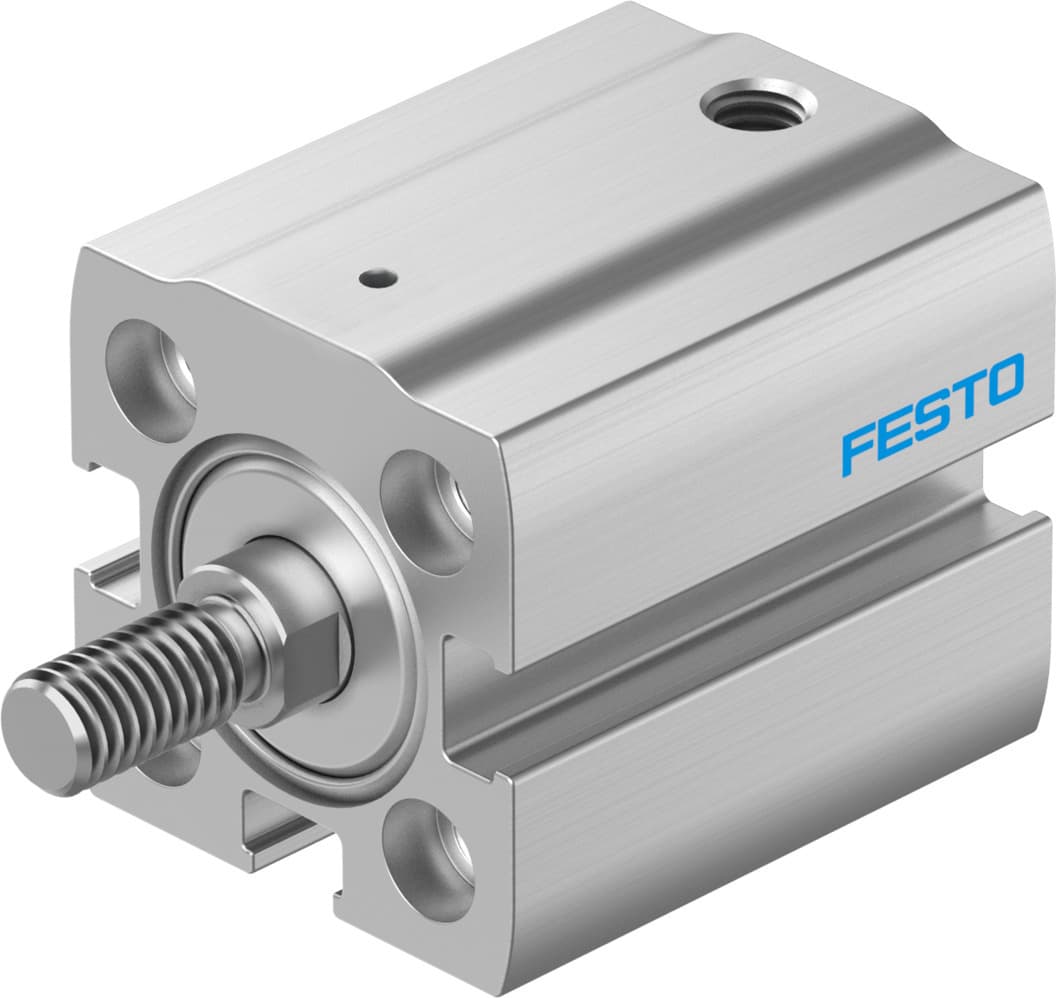

Festo AEN-S-16-10-A-P Compact Cylinder - High-Quality Air Cylinder

Selling Points

1Compact Design: 10mm stroke and 16mm piston diameter for space-efficient applications.
2Elastic Cushioning: Both ends feature elastic cushioning rings/plates for smooth operation.
3Versatile Mounting: Optional mounting positions including through-hole, internal thread, and accessories.
4High-Pressure Capability: Operates at 0.1MPa to 10BAR with compressed air to ISO 8573-1:2010 [7:4:4].
5Robust Materials: Made from anodized wrought aluminum alloy cover, high-alloy stainless steel piston rod, and NBR dynamic seals.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing	Piston rod end	External thread
Structural design	Piston Piston rod	Symbol	00991730
Variants	Piston rod at one end	Operating pressure	1bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	0°C 60°C	Impact energy in the end positions	0.038J
Theoretical force at 6 bar, retracting	9.5N	Theoretical force at 6 bar, advancing	95N
Moving mass at 0?mm stroke	6g	Additional moving mass per 10?mm stroke	4g
Basic weight with 0?mm stroke	32.5g	Additional weight per 10?mm stroke	18g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy, anodized
Material of dynamic seals	NBR	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	8092143

Specifications may be subject to change without notice
