Product Model

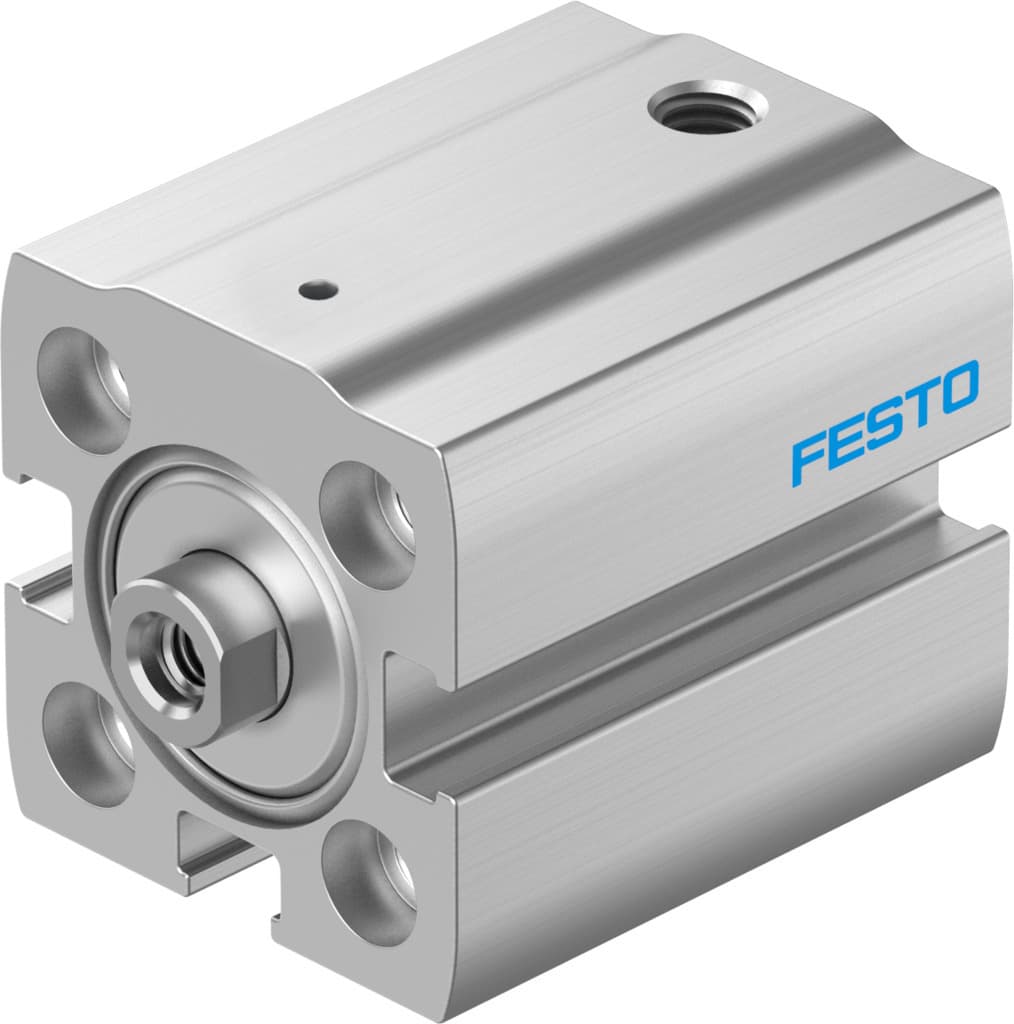

aen-s-16-10-i-p
Selling Points
- 1Elastic Cushioning Rings/Plates: Ensures smooth operation and reduces wear on the cylinder.
- 2Optional Mounting Positions: Flexible installation options for various applications.
- 3High-Alloy Stainless Steel Piston Rod: Provides durability and resistance to corrosion.
- 4Operating Pressure Range: Suitable for 0.1 MPa to 1 MPa (1 bar to 10 bar) compressed air.
- 5Compact Design: Ideal for space-constrained environments with a stroke of 10 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Symbol | 00991730 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 0°C 60°C | Impact energy in the end positions | 0.038J |
Theoretical force at 6 bar, retracting | 9.5N | Theoretical force at 6 bar, advancing | 95N |
Moving mass at 0?mm stroke | 6g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 32.5g | Additional weight per 10?mm stroke | 18g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, anodized |
Material of dynamic seals | NBR | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8076492 |
