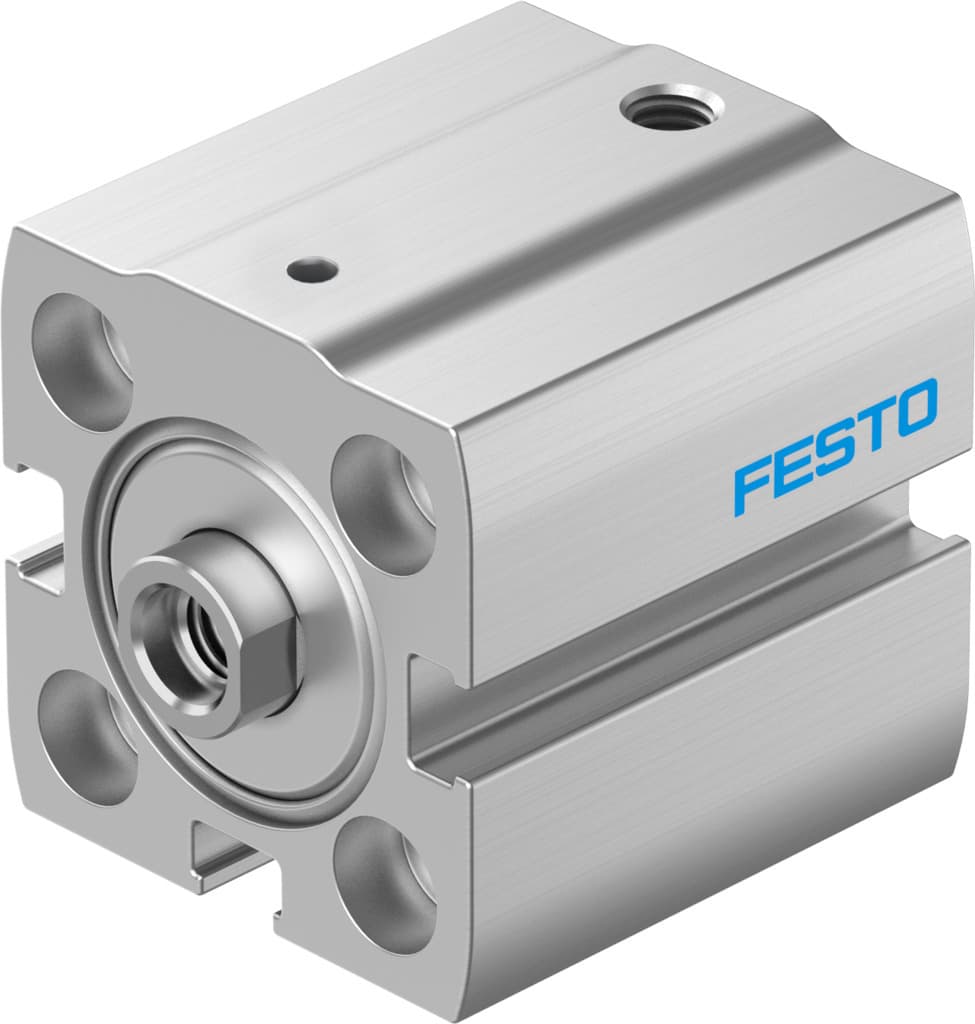

Product Model
aen-s-20-10-i-p-a
Selling Points
- 1Ensures smooth operation and reduces wear on the cylinder.
- 2Provides durability and resistance to corrosion.
- 3Flexibility in installation to suit various applications.
- 4Allows for both extension and retraction strokes.
- 5Meets ISO 8573-1:2010 standards for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 0.055J | Theoretical force at 6 bar, retracting | 17N |
Theoretical force at 6 bar, advancing | 162N | Moving mass at 0?mm stroke | 18g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 65g |
Additional weight per 10?mm stroke | 26g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8076498 |
Specifications may be subject to change without notice
