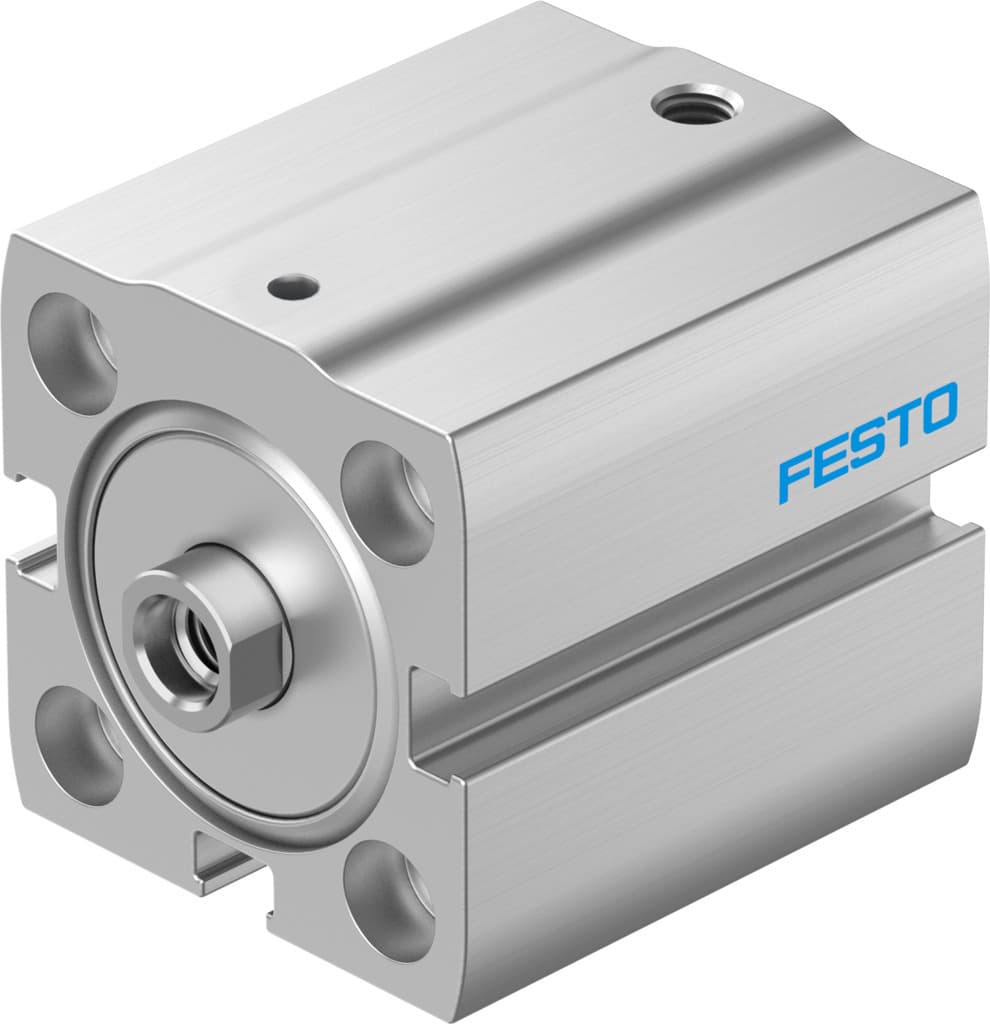

Festo AEN-S-25-10-I-P Compact Cylinder - High Precision Pneumatic Actuator

Selling Points

1Compact Design: 10 mm stroke and 25 mm piston diameter for space-efficient applications.
2Elastic Cushioning: Both ends equipped with elastic cushioning rings/plates for smooth operation.
3Optional Mounting: Flexible mounting options via through-hole or female thread.
4High-Pressure Capability: Operating pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar).
5Durable Construction: Made from RoHS-compliant anodised wrought aluminium alloy and high-alloy stainless steel piston rod.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	25 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing	Piston rod end	Internal thread
Structural design	Piston Piston rod	Symbol	00991730
Variants	Piston rod at one end	Operating pressure	0.6bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	0°C 60°C	Impact energy in the end positions	0.09J
Theoretical force at 6 bar, retracting	22N	Theoretical force at 6 bar, advancing	259N
Moving mass at 0?mm stroke	17g	Additional moving mass per 10?mm stroke	6g
Basic weight with 0?mm stroke	70g	Additional weight per 10?mm stroke	30g
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy, anodized
Material of dynamic seals	NBR	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	8076507

Specifications may be subject to change without notice
