Product Model

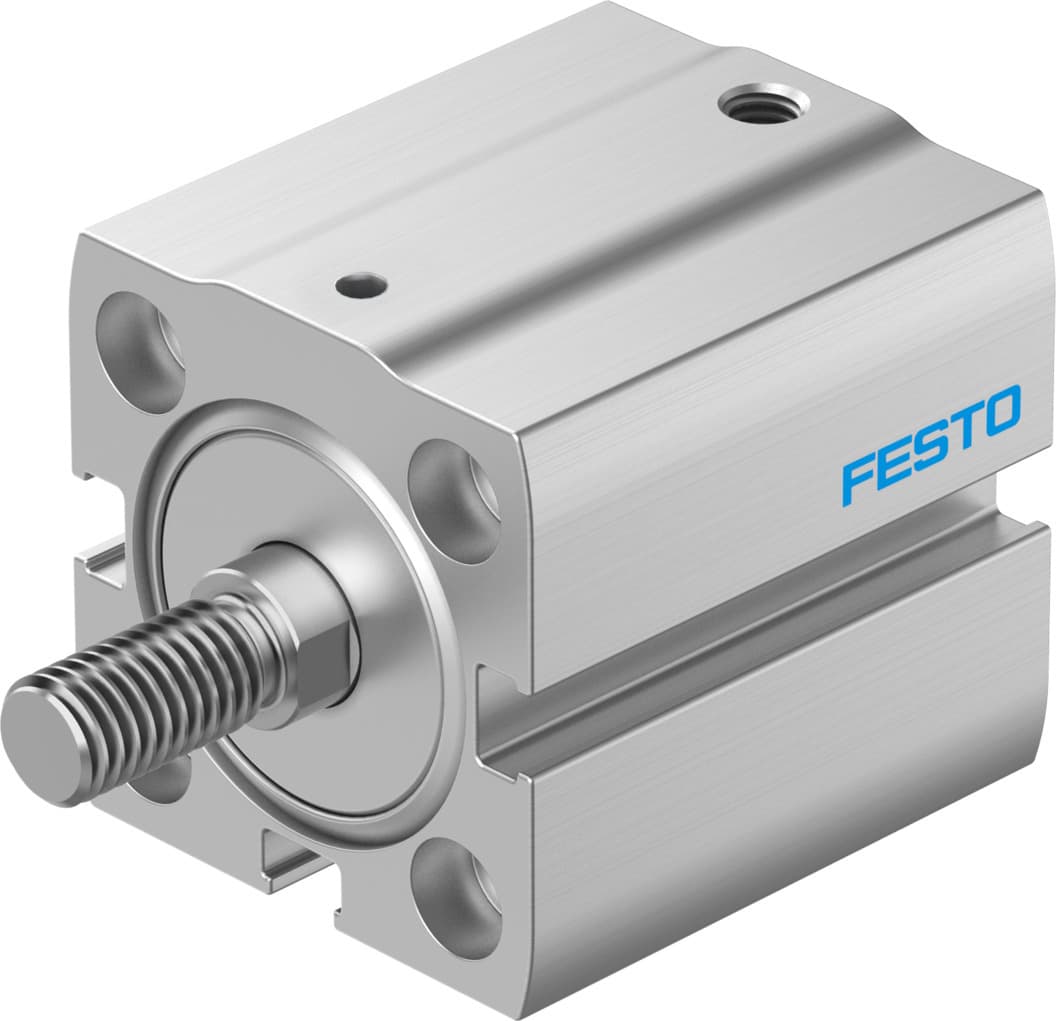

aen-s-25-5-a-p-a
Selling Points
- 1Compact design with 25mm bore and 5mm stroke.
- 2Elastic cushioning rings at both ends for smooth operation.
- 3Optional mounting positions for versatile installation.
- 4Operating pressure range of 0.06 MPa to 1 MPa.
- 5Made from high-quality materials, including anodized aluminum alloy and high-alloy stainless steel piston rod.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 0.3J | Theoretical force at 6 bar, retracting | 18N |
Theoretical force at 6 bar, advancing | 259N | Moving mass at 0?mm stroke | 25g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 88g |
Additional weight per 10?mm stroke | 30g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8092177 |
