Product Model

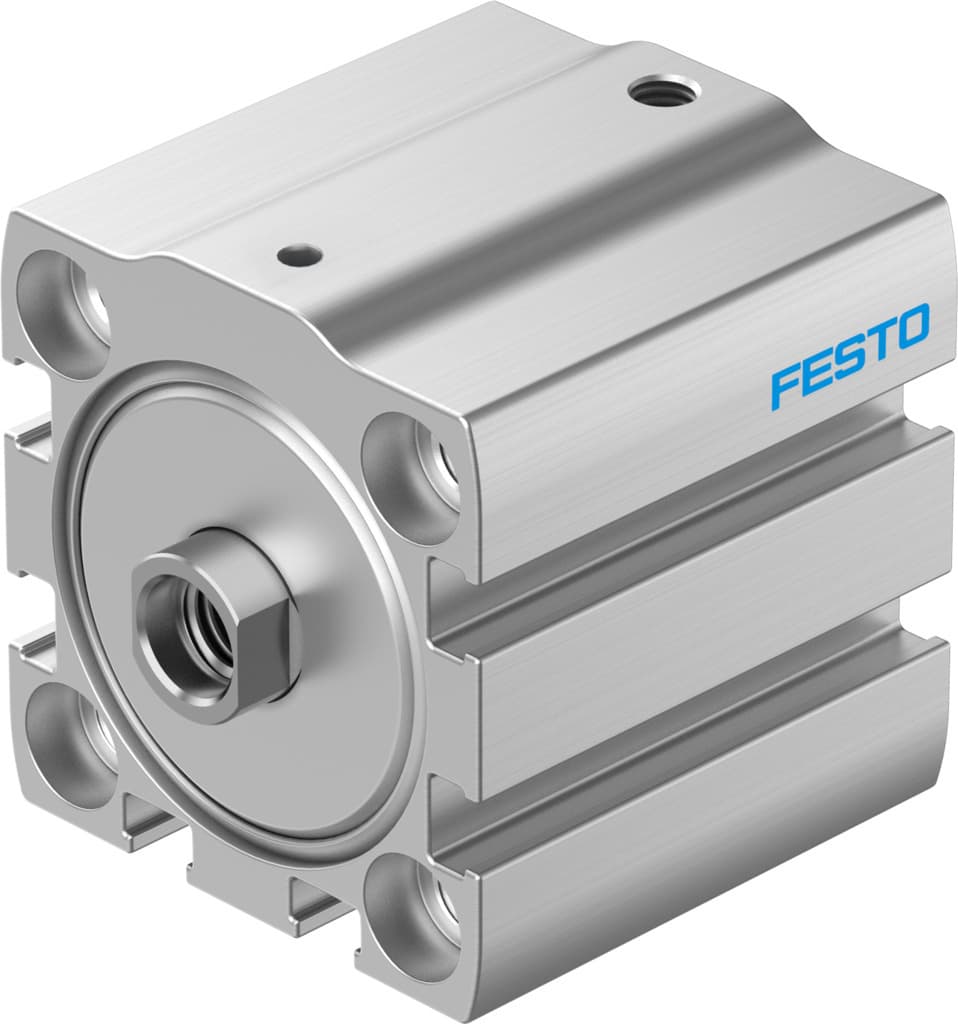

aen-s-32-10-i-p-a
Selling Points
- 1High-Performance Pneumatic Operation: Designed for double-acting operation with a stroke of 10 mm and a piston diameter of 32 mm.
- 2Robust Construction: Made with high-alloy stainless steel piston rods and anodized wrought aluminum alloy housing for durability.
- 3Low Corrosion Stress: Meets CRC 1 standards, ensuring low corrosion stress in various environments.
- 4Versatile Mounting Options: Can be mounted via through-hole or female thread, offering flexibility in installation.
- 5Compliant with ISO Standards: Operates with compressed air according to ISO 8573-1:2010, ensuring compliance with industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 32 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 0.4J | Theoretical force at 6 bar, retracting | 44N |
Theoretical force at 6 bar, advancing | 439N | Moving mass at 0?mm stroke | 37g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 117g |
Additional weight per 10?mm stroke | 36g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8076515 |
Specifications may be subject to change without notice
