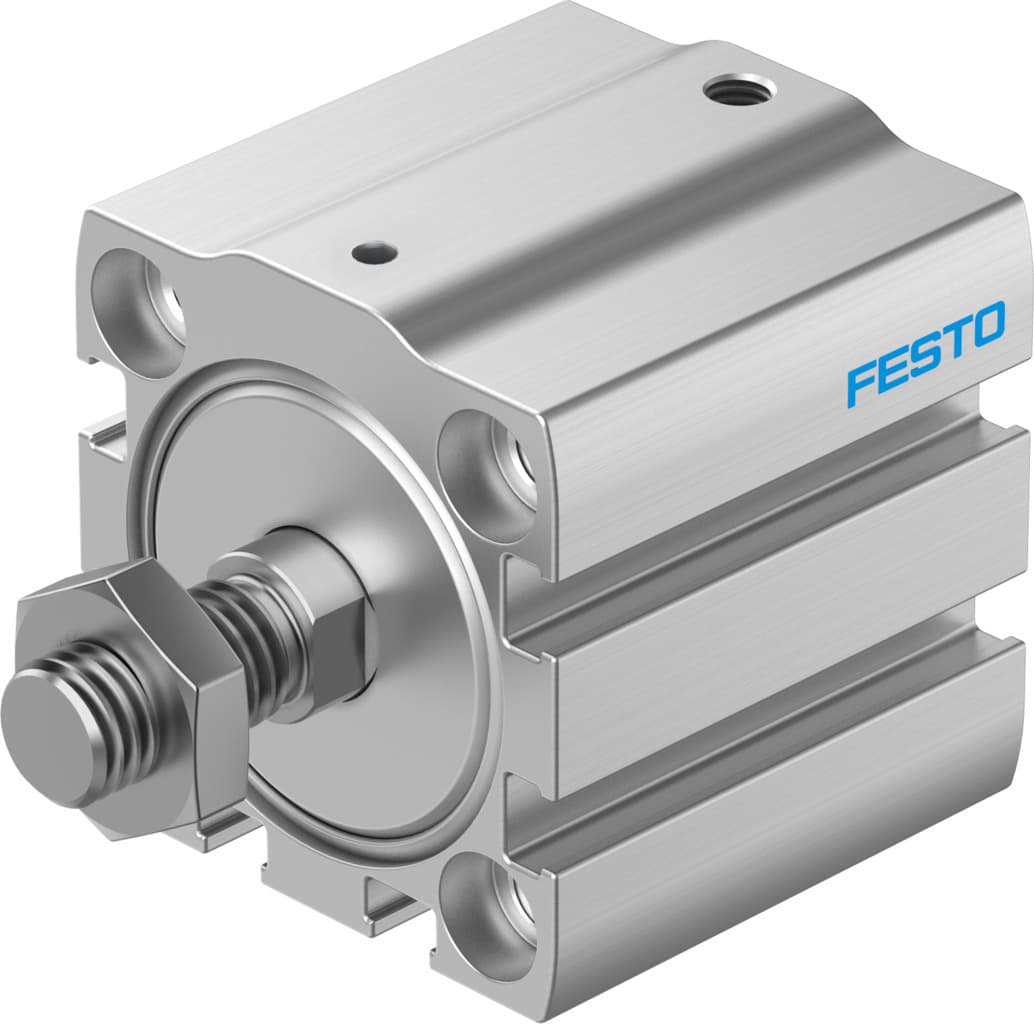

Festo AEN-S-32-25-A-P-A Compact Cylinder - High-Quality Pneumatic Solution

Selling Points

1High-Performance Pneumatic Solution: Ideal for applications requiring precise movement and control.
2Compact Design: 25mm stroke and 32mm piston diameter for efficient use in tight spaces.
3Elastic Cushioning: Ensures smooth operation with elastic cushioning rings/plates at both ends.
4Optional Mounting Position: Flexible installation options to suit different setup requirements.
5Compliant with Industry Standards: Meets ISO 8573-1:2010 and VDMA24364-B2-L standards for reliability and safety.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	32 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing	Piston rod end	External thread
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Variants	Piston rod at one end
Operating pressure	0.6bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	0°C 60°C
Impact energy in the end positions	0.4J	Theoretical force at 6 bar, retracting	42N
Theoretical force at 6 bar, advancing	439N	Moving mass at 0?mm stroke	37g
Additional moving mass per 10?mm stroke	9g	Basic weight with 0?mm stroke	117g
Additional weight per 10?mm stroke	36g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	M5	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy, anodized	Material of dynamic seals	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy stainless steel
Manufacturer ID	8092168

Specifications may be subject to change without notice
