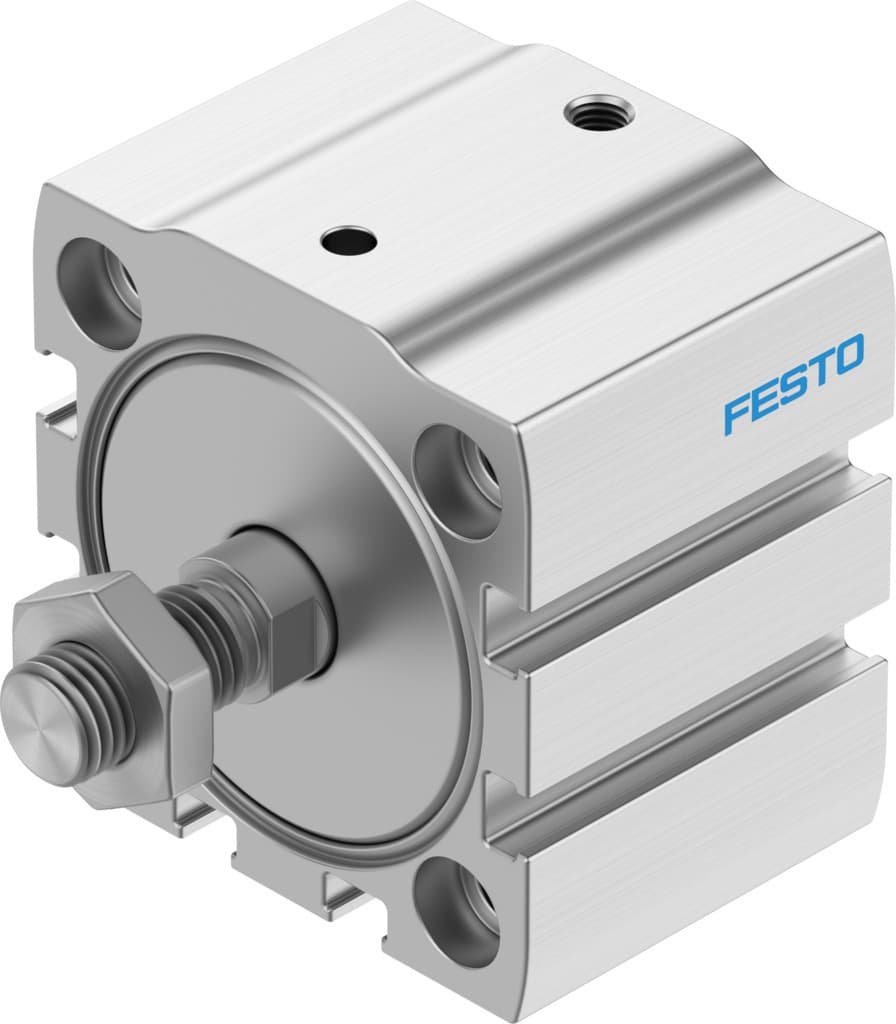

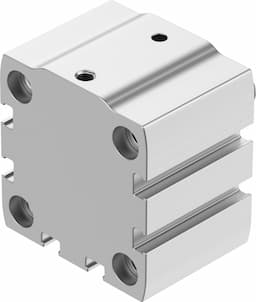

Product Model
aen-s-40-25-a-p-a
Selling Points
- 1High Precision Pneumatic Solution: Designed for precise control and reliable operation in various applications.
- 2Compact Design: Ideal for space-constrained environments with a 40mm piston diameter and 25mm stroke.
- 3Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
- 4Versatile Mounting Options: Offers optional mounting positions, including through-hole, female thread, and accessories.
- 5Compliant with Industry Standards: Meets ISO 8573-1:2010 and VDMA24364-B2-L standards for operating medium and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 40 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991729 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 54N |
Theoretical force at 6 bar, advancing | 700N | Moving mass at 0?mm stroke | 62g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 304g |
Additional weight per 10?mm stroke | 45g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8092160 |
Specifications may be subject to change without notice
