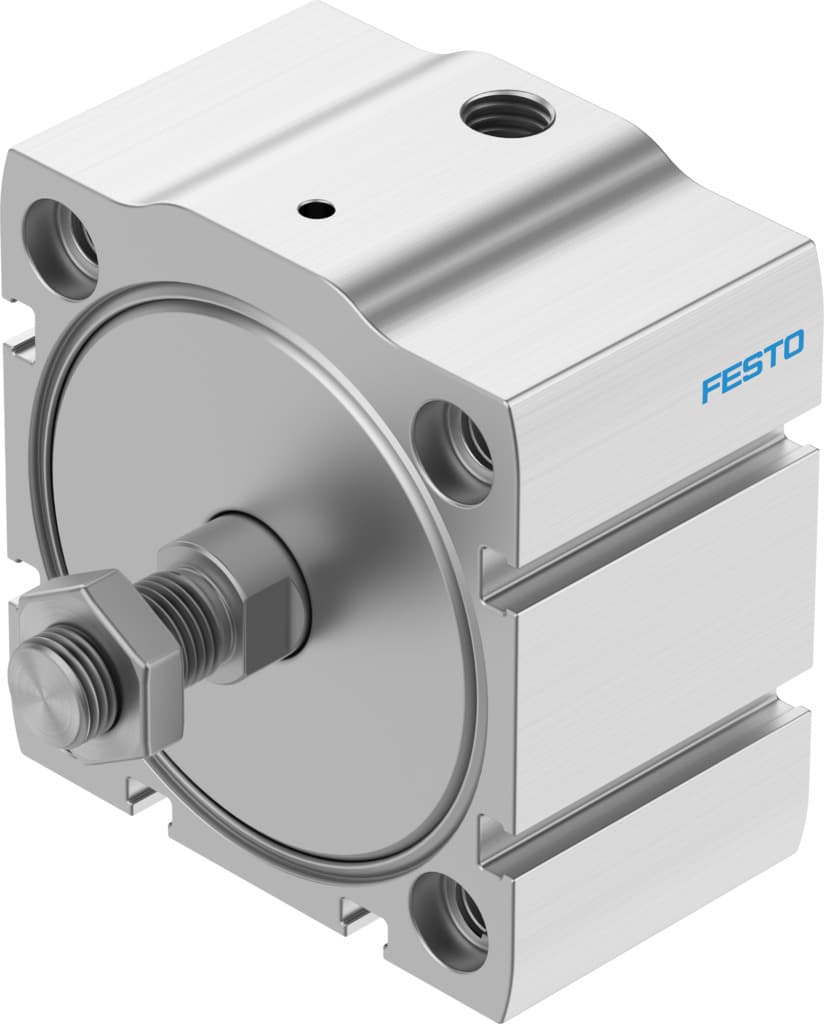

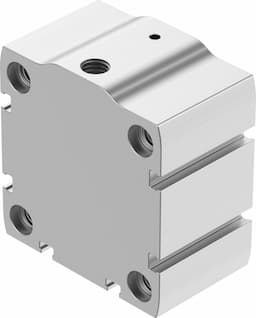

Festo AEN-S-63-25-A-P-A Compact Cylinder - High Precision & Reliability

Selling Points

1High Precision Operation: The AEN-S-63-25-A-P-A offers precise control with a 25mm stroke and 63mm piston diameter.
2Elastic Cushioning: Equipped with elastic cushioning rings at both ends for smooth operation and reduced wear.
3Versatile Mounting: Optional mounting positions ensure flexibility in system integration.
4Robust Design: Constructed from anodised wrought aluminium alloy for durability and corrosion resistance.
5Compliant with Standards: Meets ISO 8573-1:2010 standards for compressed air quality and RoHS compliance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	63 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing	Piston rod end	External thread
Structural design	Piston Piston rod	Position sensing	For proximity sensor
Symbol	00991729	Variants	Piston rod at one end
Operating pressure	0.4bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	0°C 60°C
Impact energy in the end positions	1.3J	Theoretical force at 6 bar, retracting	89.6N
Theoretical force at 6 bar, advancing	1780N	Moving mass at 0?mm stroke	151g
Additional moving mass per 10?mm stroke	16g	Basic weight with 0?mm stroke	499g
Additional weight per 10?mm stroke	77g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy, anodized	Material of dynamic seals	TPE-U(PU)
Housing material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy stainless steel
Manufacturer ID	8092146

Specifications may be subject to change without notice
